Economy E Series Acrylic Food Production Line Mirrors

This is a more lightweight mirror for use in less harsh industrial or production areas where a convex mirror can improve the existing monitoring and safety systems.

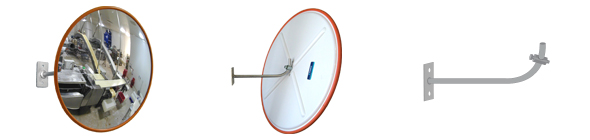

Features

Premium quality acrylic mirror face
ASA Vinyl back
Galvanized steel bracket and fixings
Orange vinyl extrusion for visibility in the factory setting
Unique J-Bracket for easy installation and adjustment

Suitable Uses

Production equipment safety
Monitoring processes and machinery
Minimal cleaning regimes
Prevent production line blockages and jams

Download Information Sheet pdf.

Positioning

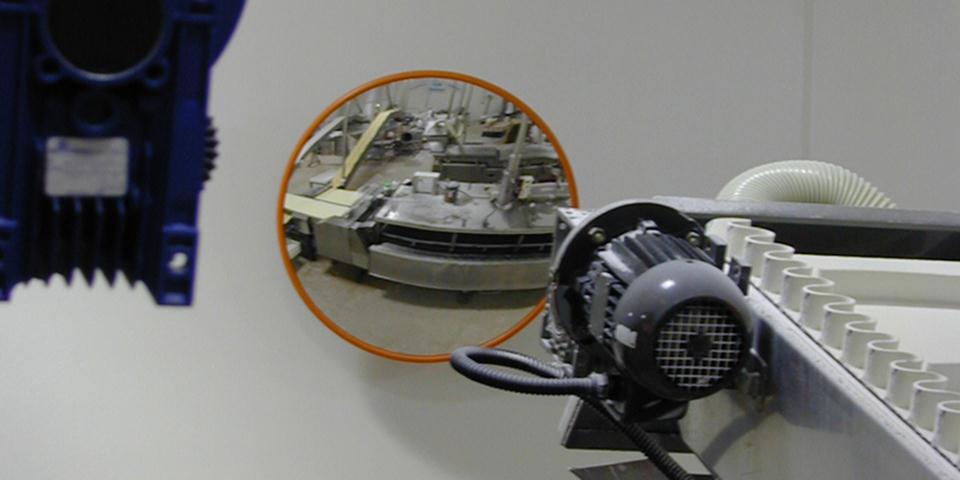

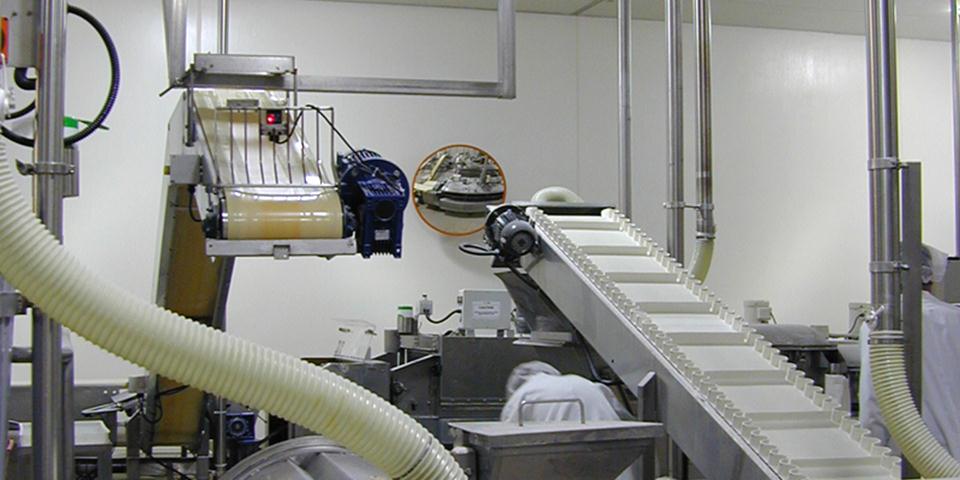

Food Processing Mirror Position

Specifications

Product Code	Size Diameter	View Distance	Mirror Face	Mirror Back	Bracket Length
18220E	300mm	Up to 21m	2mm Acrylic	ASA Vinyl	250mm J-Bracket
18244E	450mm	Up to 28m	2mm Acrylic	ASA Vinyl	250mm J-Bracket
18266E	600mm	Up to 38m	2mm Acrylic	ASA Vinyl	360mm J-Bracket
18287E	800mm	Up to 50m	3mm Acrylic	ASA Vinyl	360mm J-Bracket
18295E	1000mm	Over 55m	3mm Acrylic	ASA Vinyl	435mm J-Bracket

Installation Guide

Food and Production Line Mirror Installation Guide:

Decide the appropriate place to site the mirror to give maximum vision.
Fix J-Bracket to wall or ceiling using suitable fixing hardware (ie: screws, bolts). Allowing enough room to get the mirror on to the J-Bracket.
Thread adaptor into the back of the mirror.
Peel protective film off around the immediate edge of the mirror.
Slide the adaptor and mirror over the J-Bracket and adjust mirror to the desired position.
Tighten the locking bolt on the adaptor securely.

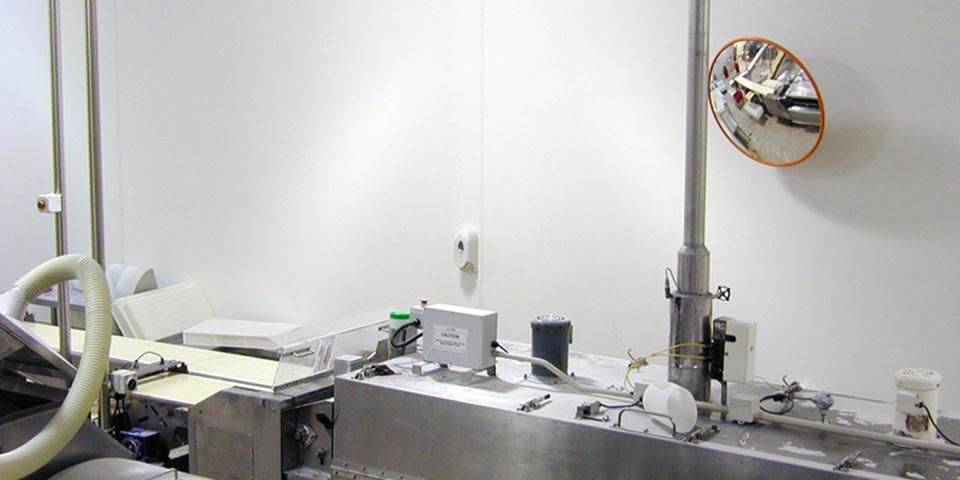

Food Processing Mirror Installation

Download Installation Guide pdf.

Cleaning Guide

Acrylic Mirror Cleaning Guide:

General Cleaning:
Convex Security Mirrors recommend cleanning their acrylic mirror faces with soap and water and then with a clean, soft, lint free, damp cloth. Use a non-abrasive polish, such as Johnson’s Pledge or Mr Sheen for a clear bright reflection.

Saturate a clean soft cloth with polish, then spray the mirror face with polish. Wipe the wetted cloth over the mirror surface. With a another clean dry cloth buff the mirror face until it is clear of polish.

DO NOT USE:

abrasives
acids
solvents such as petrol and laquer thinners

Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours. To remove graffiti, use a non-abrasive substance such as De-Solv-it Stain Remover. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.

Scratches:
To remove scratches or repair blemishes on acrylic mirror faces only, use the following products:
