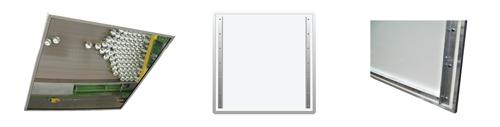

Rectangular L Series Production Line Mirrors

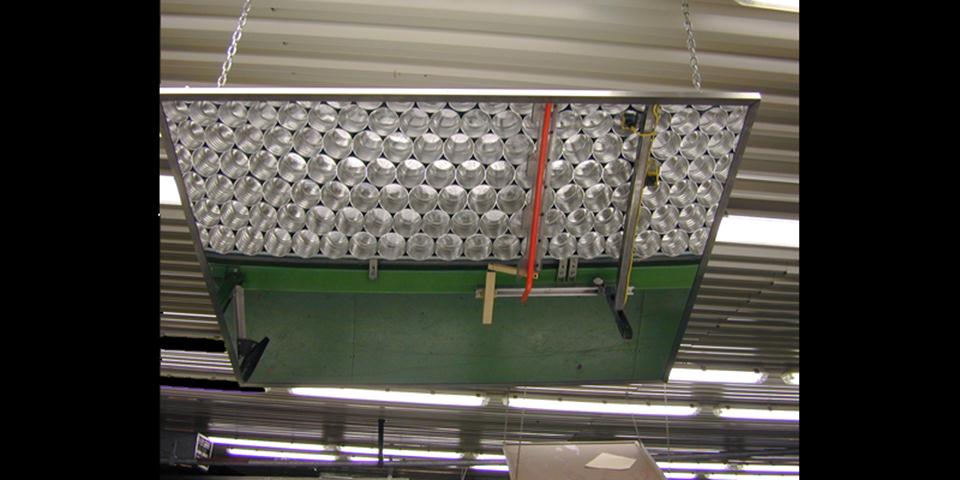

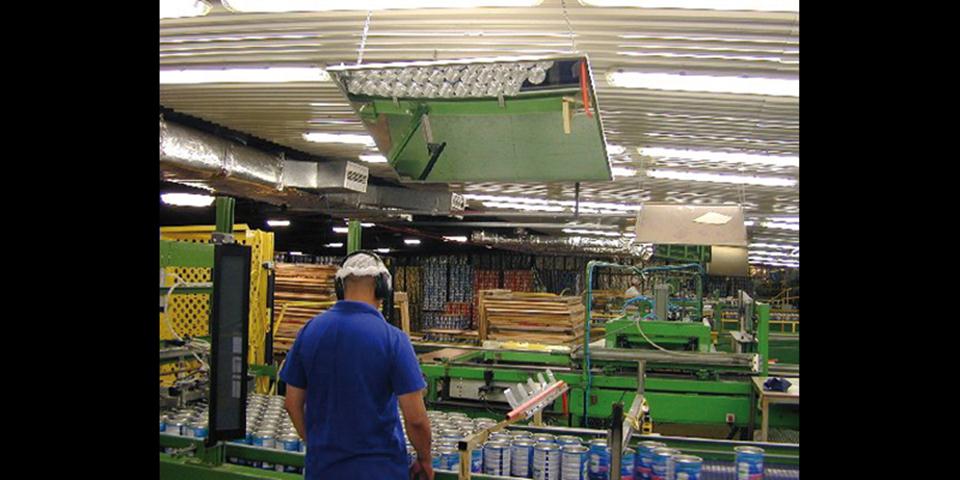

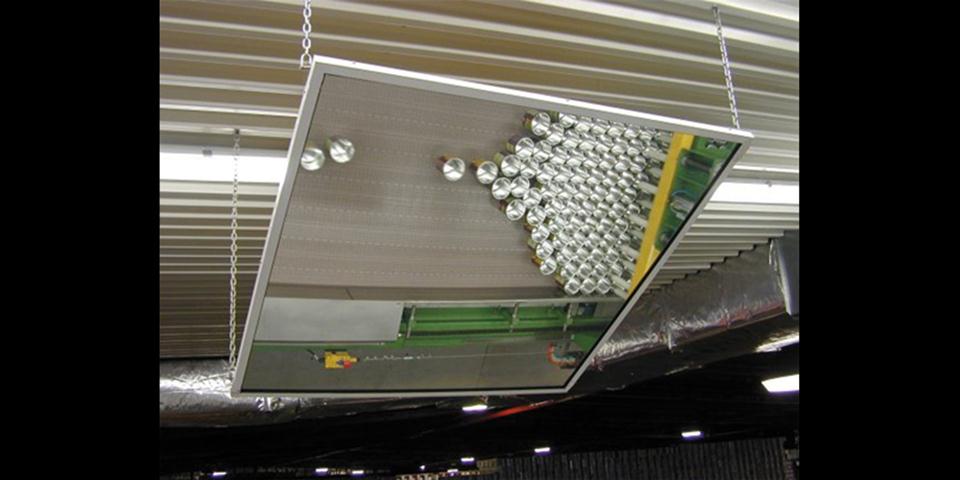

For overhead observation of process lines and container inspection the DuraVision™ L Series mirrors provides the ideal solution. This range of flat acrylic mirrors, laminated to a rigid substrate for strength and image clarity, can be suspended or mounted directly on ceilings or walls to provide optimal viewing.

Features

Premium quality acrylic face
Rigid sealed back
Aluminium edging
Interior use only

Suitable Uses

Monitoring processes and machinery
Preventing production line blockages and jams
Viewing conveyor belts
Quality control

Specifications

Product Code	Size Diameter	View Distance	Mirror Face	Mirror Back	Bracket Length
18760L	600x600mm	Up to 50m	3mm Flat Acrylic	PVC Coated MDF Board	N/A
18762L	600x1200mm	Up to 60m	3mm Flat Acrylic	PVC Coated MDF Board	N/A
18792L	1200x1200mm	Up to 60m	3mm Flat Acrylic	PVC Coated MDF Board	N/A
18796L	1200x2400mm	Up to 70m	3mm Flat Acrylic	PVC Coated MDF Board	N/A

Cleaning Guide

Acrylic Mirror Cleaning Guide:

General Cleaning:
Convex Security Mirrors recommend cleanning their acrylic mirror faces with soap and water and then with a clean, soft, lint free, damp cloth. Use a non-abrasive polish, such as Johnson’s Pledge or Mr Sheen for a clear bright reflection.

Saturate a clean soft cloth with polish, then spray the mirror face with polish. Wipe the wetted cloth over the mirror surface. With a another clean dry cloth buff the mirror face until it is clear of polish.

DO NOT USE:

abrasives
acids
solvents such as petrol and laquer thinners

Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours. To remove graffiti, use a non-abrasive substance such as De-Solv-it Stain Remover. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.

Scratches:
To remove scratches or repair blemishes on acrylic mirror faces only, use the following products:
