Description

Heavy Duty Inspection Mirrors

DuraVision™ Heavy Duty inspection mirrors are durable, lightweight and easy to use, suitable for most tough inspection environments. The Heavy Duty aluminium handle is available in two sizes, the larger model can extend up to 2.4 meters. The handle adjusts to different lengths and stays securely in place with the Spring Loaded Locking Pin. Use it to view below, above and around just about any hard to see areas. This high quality mirror makes everything visible. Comes complete with adjustable heavy duty handle and drawstring protection bag.



Features

  • 2mm acrylic mirror face
  • Pure reflective coating
  • ACM (Aluminium Composite Material) back for added strength
  • Heavy Duty Aluminium with Spring Loaded Locking Pin
  • Draw-cord protective bag in heavy duty nylon with fleece liner to protect mirror
  • Optional base light with hinge plate provides up-lighting to area required



Suitable Uses

  • Inspection of Machinery
  • Checking down drains and holes
  • Under and around vehicles
  • Bomb inspection
  • Customs and security checkpoints
  • Police and military services

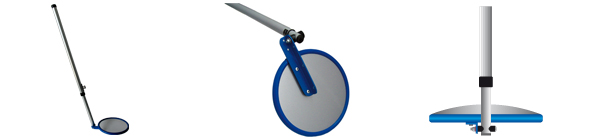

Positioning

Inspection Mirror Positioning



Specifications

Product Code Size Diameter View Distance Mirror Face Mirror Back Bracket Length
HIM150S 150mm Up to 2m 2mm Acrylic ACM 0.6m - 1.2m
HIM150L 150mm Up to 2m 2mm Acrylic ACM 1.2m - 2.4m
HIM230S 230mm Up to 4m 2mm Acrylic ACM 0.6m - 1.2m
HIM230L 230mm Up to 4m 2mm Acrylic ACM 1.2m - 2.4m
Product Code Size Diameter View Distance Mirror Face Mirror Back Bracket Length
68722H 9" Up to 13' 2mm Acrylic ACM 24" - 47"
68723H 9" Up to 13' 2mm Acrylic ACM 47" - 95"

Additional Images

150mm Heavy Duty Vehicle Inspection

150mm Heavy Duty Vehicle Inspection

Heavy Duty Handle Inspection

Heavy Duty Handle Inspection

Heavy Duty Container Inspection

Heavy Duty Container Inspection

230mm Heavy Duty Vehicle Inspection

230mm Heavy Duty Vehicle Inspection
