Description

Heavy Duty Lookunder Mirrors

DuraVision™ Heavy Duty Lookunder mirrors are durable, lightweight and easy to maneouvre on it’s castor wheels. The Heavy Duty aluminium handle is available in two sizes, the larger model can extend up to 2.4 meters. The handle adjusts to different lengths and stays securely in place with the Spring Loaded Locking Pin. Designed to roll under vehicles or large objects to view areas which are difficult to access and hard to see. This high quality mirror makes everything visible. Comes complete with adjustable heavy duty handle and drawstring protection bag.



Features

  • 2mm acrylic mirror face
  • Pure reflective coating
  • ACM (Aluminium Composite Material) back for added strength
  • Large radius of curvature provides wider area of vision
  • Castor wheels for easy positioning in location
  • Heavy Duty Aluminium with Spring Loaded Locking Pin
  • Draw-cord protective bag in heavy duty nylon with fleece liner to protect mirror
  • Optional base light with hinge plate provides up-lighting to area required



Suitable Uses

  • Under and around vehicles
  • Bomb inspection
  • Customs and security checkpoints
  • Police and military services





Positioning

Lookunder Mirror Positioning



Specifications

Product Code Size Diameter View Distance Mirror Face Mirror Back Bracket Length
HLM300S 300mm Up to 6m 2mm Acrylic ACM 0.6m - 1.2m
HLM300L 300mm Up to 6m 2mm Acrylic ACM 1.2m - 2.4m
HLM450S 450mm Up to 10m 2mm Acrylic ACM 0.6m - 1.2m
HLM450L 450mm Up to 10m 2mm Acrylic ACM 1.2m - 2.4m
Product Code Size Diameter View Distance Mirror Face Mirror Back Bracket Length
68745H 18" Up to 33' 2mm Acrylic ACM 47" - 95"

Additional Images

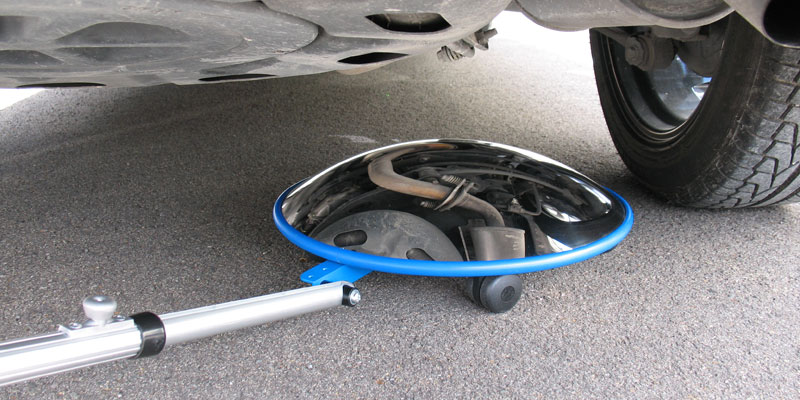

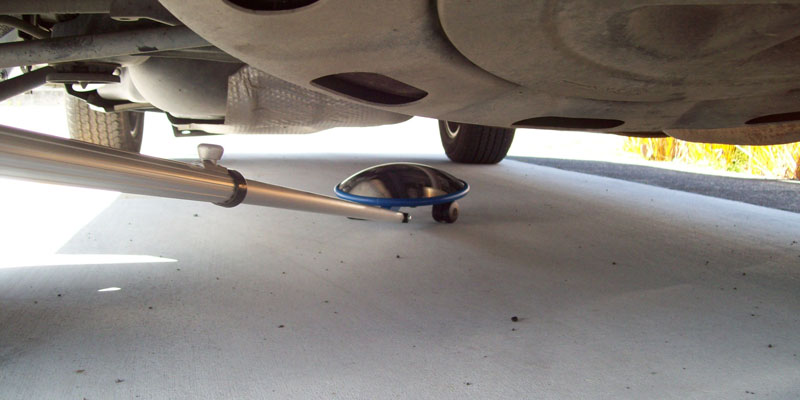

Heavy Duty Lookunder Vehicle

Heavy Duty Lookunder Vehicle

Heavy Duty Lookunder Mirror Long Handle

Heavy Duty Lookunder Mirror Long Handle

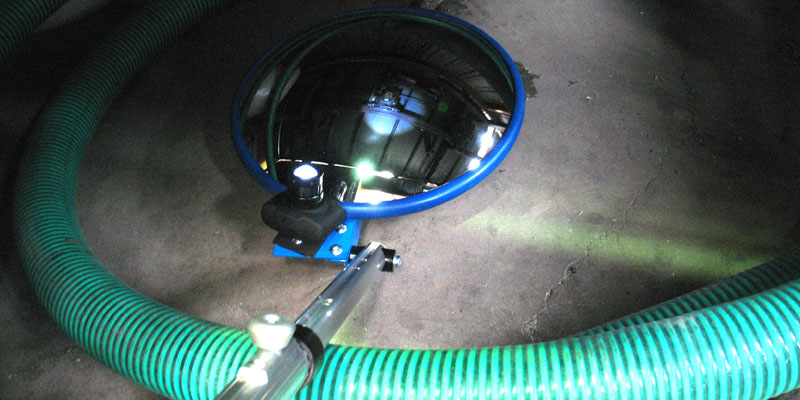

Heavy Duty Lookunder Mirror

Heavy Duty Lookunder Mirror
