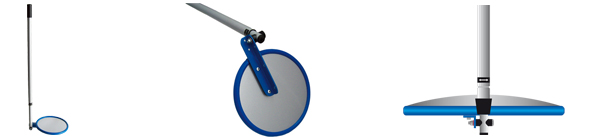

Inspection Convex Mirror Feature

Description

Portable Inspection Mirrors

DuraVision™ portable inspection mirrors are durable, lightweight and easy to use, suitable for most inspection applications. The telescopic handle is available in two sizes, the larger model can extend up to 2 meters. Use it to view below, above and around just about any hard to see places. This high quality mirror makes everything visible. Comes complete with fully adjustable telescopic handle and drawstring protection bag.



Features

  • 2mm acrylic mirror face
  • Pure reflective coating
  • ACM (Aluminium Composite Material) back for added strength
  • Telescopic handle made from durable, lightweight aluminium
  • Handle features twist-lock for extension and hanging hole for easy storage
  • Draw-cord protective bag in heavy duty nylon with fleece liner to protect mirror
  • Optional base light with hinge plate provides up-lighting to area required
  • Optional torch mount available for standard C & D Cell Maglite torches



Suitable Uses

  • Inspection of Machinery
  • Checking down drains and holes
  • Under and around vehicles
  • Bomb inspection
  • Customs and security checkpoints
  • Police and military services





Positioning

Inspection Mirror Positioning



Specifications

Product Code Size Diameter View Distance Mirror Face Mirror Back Bracket Length
IM150HS 150mm Up to 2m 2mm Acrylic ACM 0.6m-1.2m
IM150HL 150mm Up to 2m 2mm Acrylic ACM 1m-2m
IM230HS 230mm Up to 4m 2mm Acrylic ACM 0.6m-1.2m
IM230HL 230mm Up to 4m 2mm Acrylic ACM 1m-2m
Product Code Size Diameter View Distance Mirror Face Mirror Back Bracket Length
68723 9" Up to 6' 2mm Acrylic ACM 40" - 80"

Installation Guide

Portable Inspection Mirror Guide:

1. Assemble as per diagram shown below.

2. Tension Nyloc Nut as necessary (do not over tighten, as damage may occur to aluminium handle).

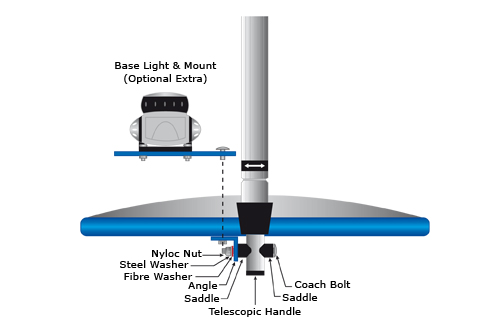

Portable Telescopic Inspection Mirror Assembly



Download Installation Guide pdf.



Cleaning Guide

Acrylic Mirror Cleaning Guide:

General Cleaning:
Convex Security Mirrors recommend cleanning their acrylic mirror faces with soap and water and then with a clean, soft, lint free, damp cloth. Use a non-abrasive polish, such as Johnson’s Pledge or Mr Sheen for a clear bright reflection.

Saturate a clean soft cloth with polish, then spray the mirror face with polish. Wipe the wetted cloth over the mirror surface. With a another clean dry cloth buff the mirror face until it is clear of polish.

DO NOT USE:

  • abrasives
  • acids
  • solvents such as petrol and laquer thinners

Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours. To remove graffiti, use a non-abrasive substance such as De-Solv-it Stain Remover. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.



Download Cleaning Guide pdf.



Additional Images

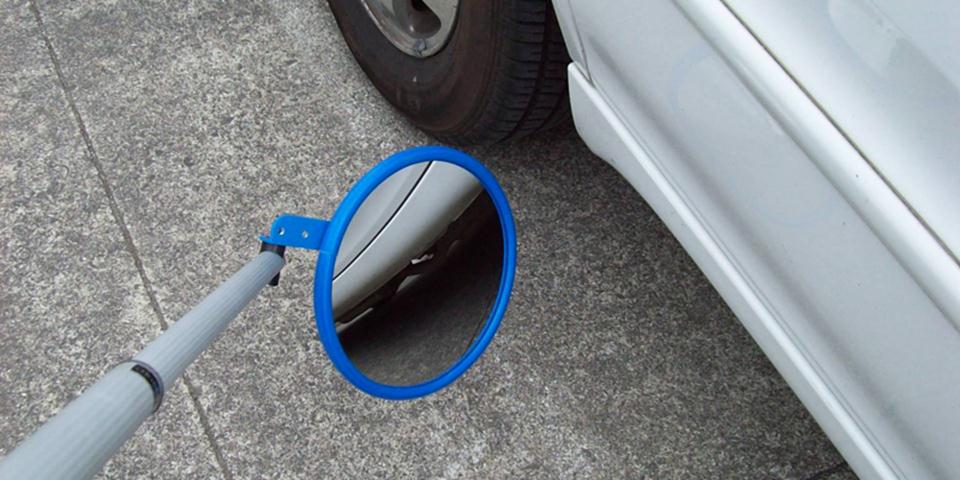

Vehicle Inspection Mirror

Vehicle Inspection Mirror

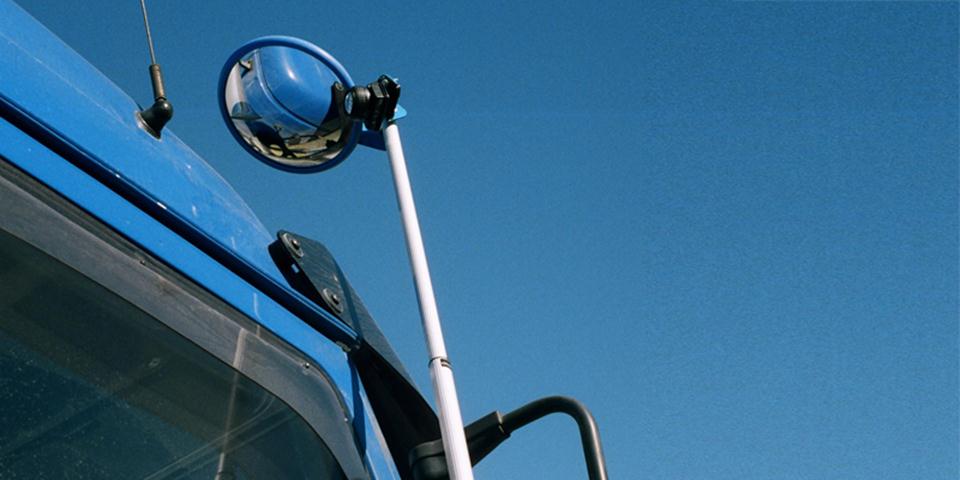

Inspection Mirror Above Truck

Inspection Mirror Above Truck

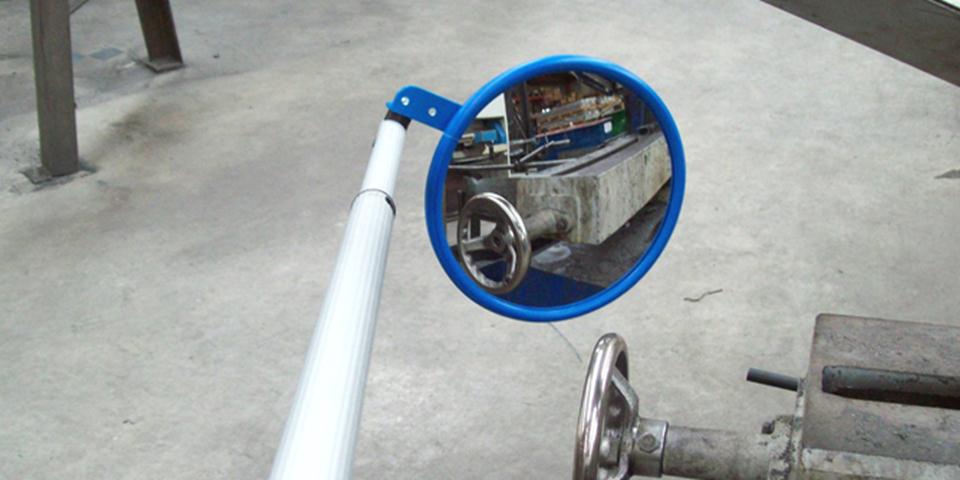

Machinery Inspection Mirror

Machinery Inspection Mirror

Portable Inspection Mirror

Portable Inspection Mirror
