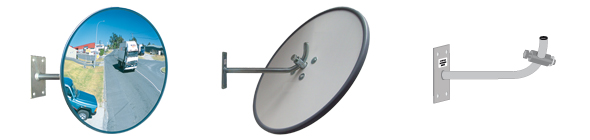

Heavy Duty Acrylic Convex Mirror Feature

Description

Heavy Duty Acrylic Convex Mirrors

The weather resistant heavy duty acrylic convex mirror is versatile and robust and will handle many industrial and traffic situations. Complete with a fully adjustable wall mounting bracket (optional pole mounting accessories are available) which is easy to install and allows the mirror to be angled in the most effective position. The mirror face is manufactured from optical grade 100% virgin acrylic and vacuum metalised using 99% pure Aluminium. These advanced mirroring and shaping techniques result in a super-bright, clear reflection with no distortion. For industrial and outdoor situations where extreme weather is not experienced, the heavy duty acrylic mirror is ideal.



Features

  • 2mm or 3mm acrylic mirror face
  • Pure reflective coating
  • Vinyl celuka back
  • Vinyl extrusion
  • Includes Outdoor J-Bracket to fix to wall or ceiling
  • Mounting screws Not included.
  • Pole mounting kit available



Suitable Uses

  • Outdoor Surveillance
  • Industrial Safety
  • Driveways and Carparks
  • Pedestrian Crossings and Sidewalks

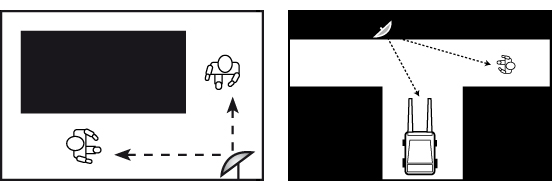

Positioning

Outdoor Heavy Duty Safety Position

Outdoor Heavy Duty Traffic Position

Specifications

Product Code Size Diameter View Distance Mirror Face Mirror Back Bracket Length
18026S 300mm Up to 21m 2mm Acrylic 10mm Vinyl 270mm
18044S 450mm Up to 28m 2mm Acrylic 10mm Vinyl 270mm
18062S 600mm Up to 38m 2mm Acrylic 10mm Vinyl 335mm
18078S 760mm Up to 46m 2mm Acrylic 10mm Vinyl 435mm
18114S 900mm Up to 55m 3mm Acrylic 10mm Vinyl 435mm
18118S 1200mm Up to 65m 3mm Acrylic 10mm Vinyl 435mm
Product Code Size Diameter View Distance Mirror Face Mirror Back Bracket Length
68026S 12" Up to 70' 2mm Acrylic 10mm Vinyl 10 ½"
68044S 18" Up to 93' 2mm Acrylic 10mm Vinyl 10 ½"
68062S 24" Up to 125' 2mm Acrylic 10mm Vinyl 13"
68078S 30" Up to 150' 2mm Acrylic 10mm Vinyl 17"
68114S 36" Up to 180' 3mm Acrylic 10mm Vinyl 17"

Installation Guide

Heavy Duty Convex Mirror Installation Guide:

  1. Decide the appropriate place to site the mirror to give maximum vision.

  2. Fix J-Bracket to wall or ceiling using suitable fixing hardware (ie: screws, bolts). Allowing enough room to get the mirror on to the J-Bracket.

  3. Thread adaptor into the back of the mirror

  4. Peel protective film off around the immediate edge of the mirror.

  5. Slide the adaptor and mirror over the J-Bracket and adjust mirror to the desired position.

  6. Tighten the locking bolt on the adaptor securely.

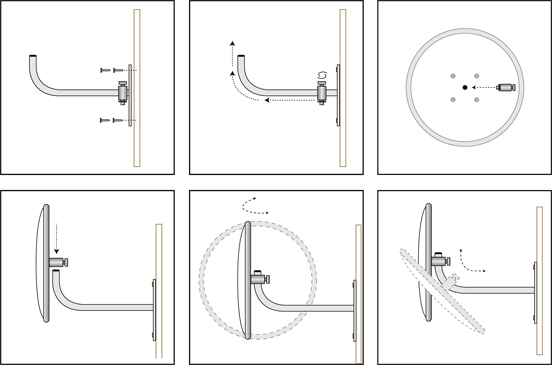

Outdoor J Bracket Installation

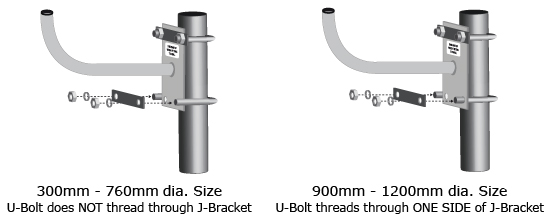

Optional Pole Mounting: (NOTE: U-Bolts are optional and must be purchased separately)

  1. Choose a 60mm or 75mm Round pole to attach the U-Bolts to.

  2. 300mm - 760mm diameter mirrors: - Thread the U-Bolts around the J-Bracket and through the U-Bolt Flat Plate.

    900mm - 1200mm diameter mirrors: - Thread the U-Bolts through one side of the J-Bracket and then through both sides of the U-Bolt Flat Plate.

  3. Thread the Washer and Nut onto the U-Bolts and tighten.

  4. Thread adaptor into the back of the mirror

  5. Slide the adaptor and mirror over the J-Bracket and adjust mirror to the desired position.

  6. Tighten the locking bolt on the adaptor securely and remove protective film.

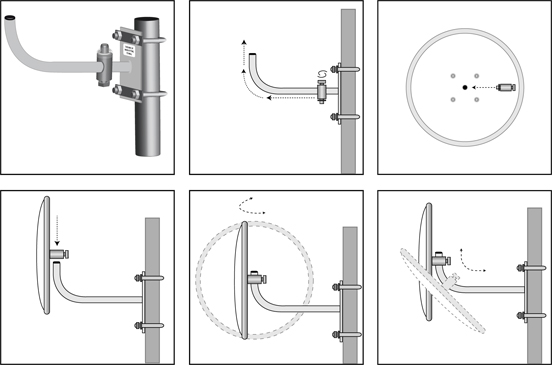

Outdoor U-Bolt Installation

Outdoor U-Bolt Installation



Download Installation Guide pdf.



Cleaning Guide

Acrylic Mirror Cleaning Guide:

General Cleaning:
Convex Security Mirrors recommend cleanning their acrylic mirror faces with soap and water and then with a clean, soft, lint free, damp cloth. Use a non-abrasive polish, such as Johnson’s Pledge or Mr Sheen for a clear bright reflection.

Saturate a clean soft cloth with polish, then spray the mirror face with polish. Wipe the wetted cloth over the mirror surface. With a another clean dry cloth buff the mirror face until it is clear of polish.

DO NOT USE:

  • abrasives
  • acids
  • solvents such as petrol and laquer thinners

Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours. To remove graffiti, use a non-abrasive substance such as De-Solv-it Stain Remover. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.

Scratches:
To remove scratches or repair blemishes on acrylic mirror faces only, use the following products:

  • For cleaning use NOVUS plastic polish #1
  • For fine scratches use NOVUS plastic polish #2
  • For badly scratched surfaces use NOVIS plastic polish #3 followed by #2 and #1.



Download Cleaning guide pdf.



Additional Images

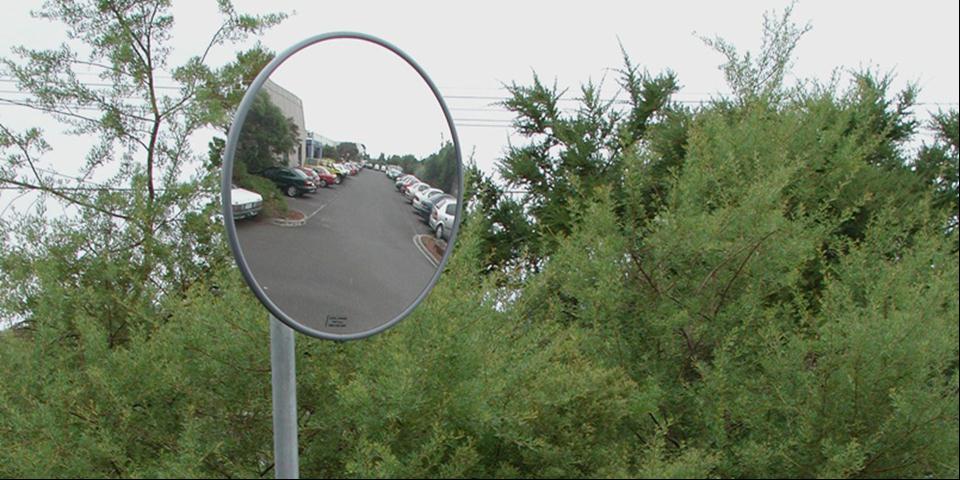

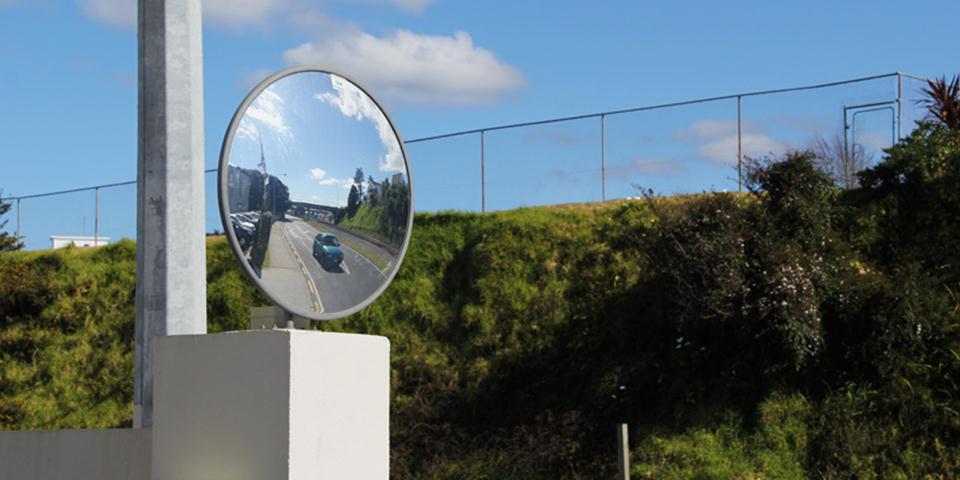

Heavy Duty Road Side Mirror

Heavy Duty Road Side Mirror

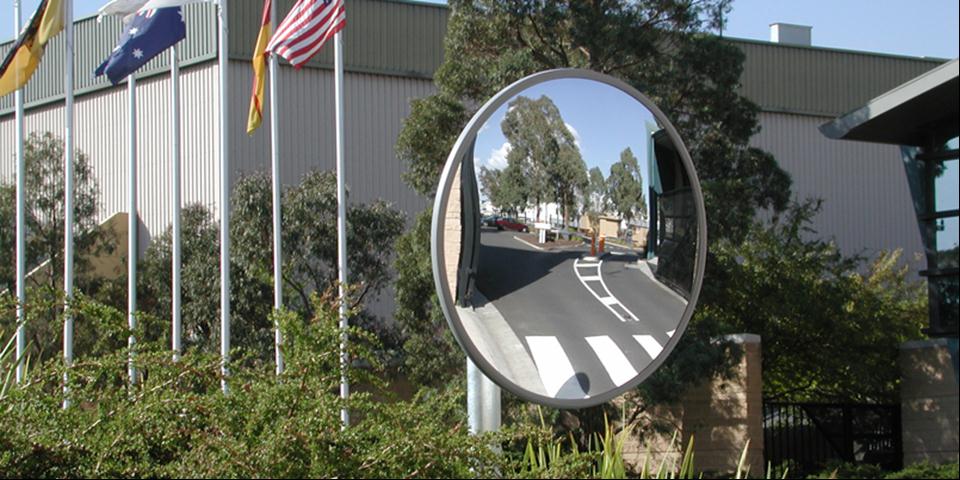

Outdoor Heavy Duty Traffic Mirror

Outdoor Heavy Duty Traffic Mirror

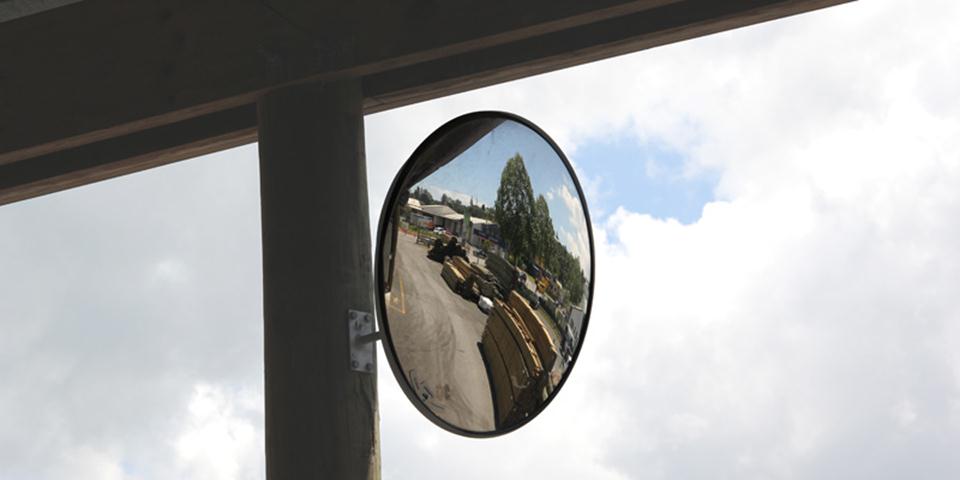

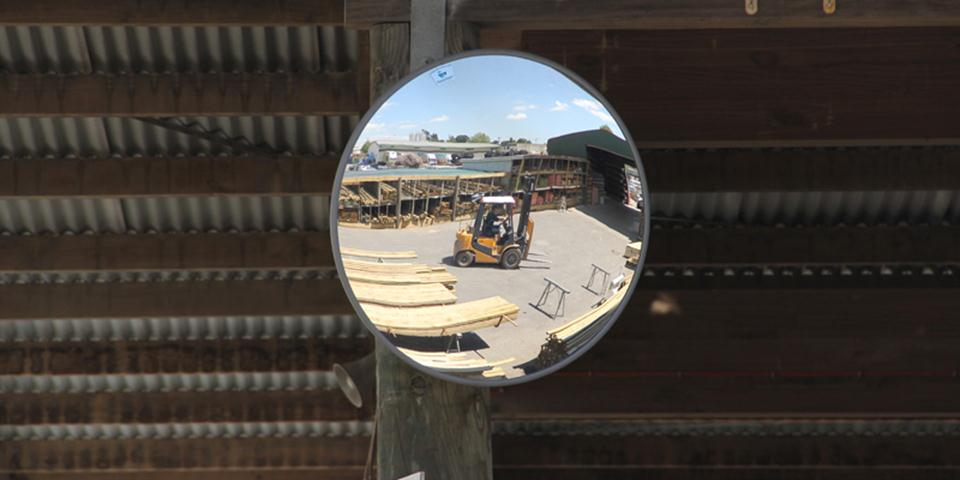

Heavy Duty Timber Yard Safety Mirror

Heavy Duty Timber Yard Safety Mirror

Heavy Duty Driveway Acrylic Mirror

Heavy Duty Driveway Acrylic Mirror

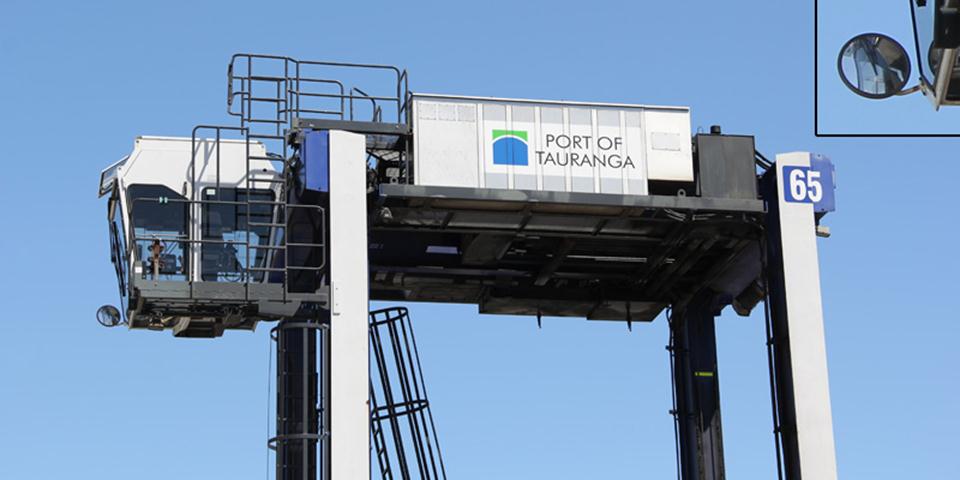

Acrylic Heavy Duty Mirror on Container Straddler

Acrylic Heavy Duty Mirror on Container Straddler

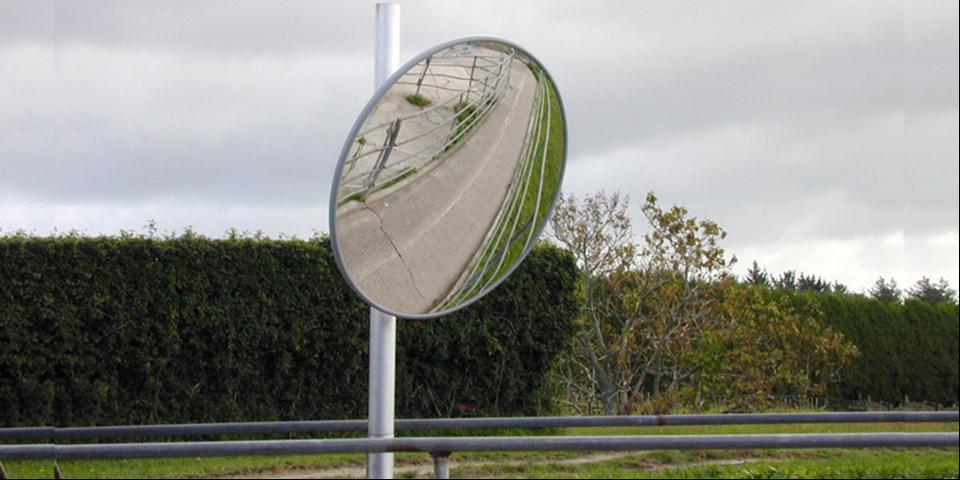

Rural Farm Mirror

Rural Farm Mirror

Heavy Duty Acrylic Mirror - Timber Yard

Heavy Duty Acrylic Mirror - Timber Yard

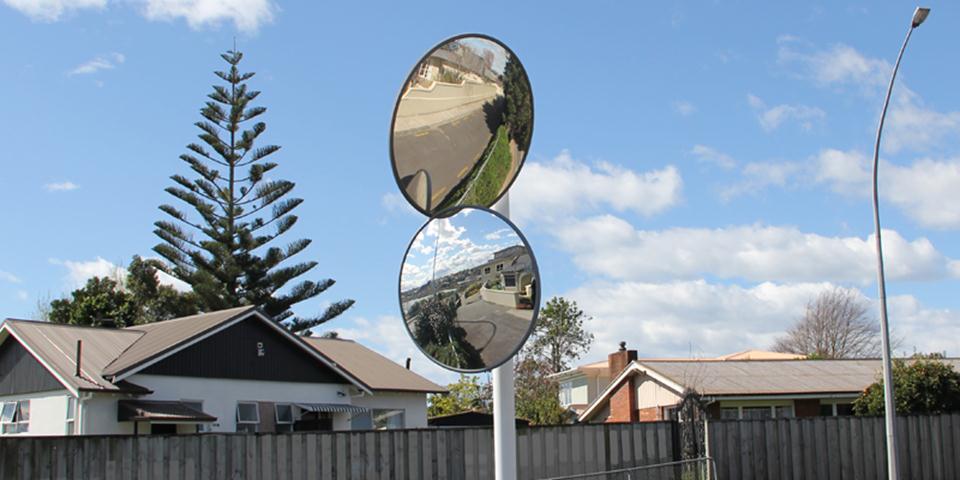

Two Way Heavy Duty Convex Mirror

Two Way Heavy Duty Convex Mirror
