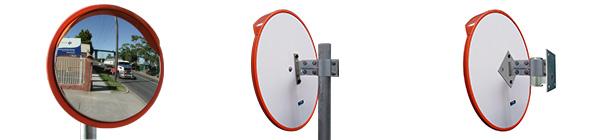

Outdoor DeLuxe Stainless Steel Convex Mirror Feature

Description

Outdoor Deluxe Stainless Steel Convex Mirror

The unbreakable Deluxe stainless steel convex mirror is tough and durable and can withstand extreme weather conditions. The shallower curve of the mirror face means you can observe high speed traffic mush more safely without risk of damage from projectile objects such as rocks or vandalism. The Deluxe model can be strategically positioned anywhere a dirver’s field of vision is obstructed, such as blind corners, a concealed entry or exit and hard to see intersections. The galvanised steel clamp bracket is designed for pole mounting. A wall mounting adaptor is also available to fix the mirror to a flat surface.

Click HERE to watch our YouTube video featuring Stainless Steel Mirrors.



Features

  • 304 grade 18 gauge stainless steel mirror face
  • Large radius of curvature for minimum distance distortion
  • Orange powder coated galvanised steel back and hood
  • Orange vinyl extrusion
  • Outdoor strength pole mount fittings to fit 75mm dia. pole
  • Wall mounting adaptor available for clamp style bracket



Suitable Uses

  • Road and Traffic Safety
  • Railway and Subway Platforms
  • Extreme Weather Conditions
  • Coastal Environments
  • Driveways and Carparks
  • Outdoor Security aound Buildings
  • Security Checkpoints and Boarder Control





Positioning

Outdoor SS Heavy Duty Traffic Position



Specifications

Product Code Size Diameter View Distance Mirror Face Mirror Back Bracket Length
16026J 300mm Up to 23m Stainless Steel Powder Coated Steel 270mm J-Bracket and 75mm dia. U-Bolts
16047J 450mm Up to 32m Stainless Steel Powder Coated Steel 270mm J-Bracket and 75mm dia. U-Bolts
16066J 600mm Up to 42m Stainless Steel Powder Coated Steel 270mm J-Bracket and 75mm dia. U-Bolts
18087C 800mm Up to 60m Stainless Steel Powder Coated Steel 75mm dia. Pole Clamp
16445C 1000mm Over 60m Stainless Steel Powder Coated Steel 75mm dia. Pole Clamp
Product Code Size Diameter View Distance Mirror Face Mirror Back Bracket Length
66066C 24" Up to 140' Stainless Steel Powder Coated Steel 3" dia. Pole Clamp
66087C 32" Up to 200' Stainless Steel Powder Coated Steel 3" dia. Pole Clamp
66445C 40" Over 200' Stainless Steel Powder Coated Steel 3" dia. Pole Clamp

Installation Guide

DeLuxe J-Bracket Installation Guide: (300 - 600mm Sizes Only)

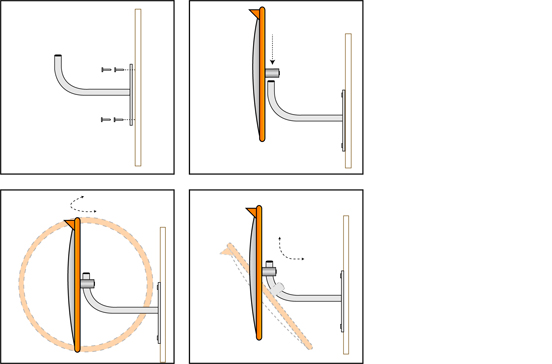

Wall Mounting - J Bracket:

  1. Decide the appropriate place to site the mirror to give maximum vision.
  2. Fix J-Bracket to wall or ceiling using suitable fixing hardware (ie: screws, bolts). Allowing enough room to get the mirror on to the J-Bracket.
  3. Slide the adaptor and mirror over the J-Bracket and adjust mirror to the desired position.
  4. Tighten the Grub Screw in the adaptor securely with the Allen Key supplied.
Outdoor J Bracket Installation

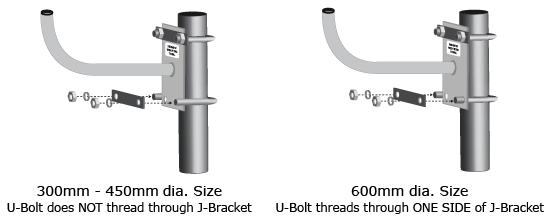

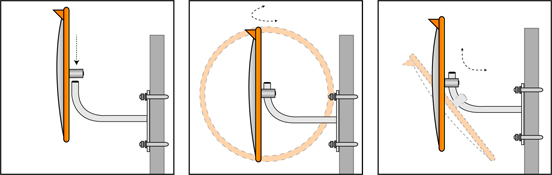

Pole Mounting with U-Bolts:

  1. Choose a 75mm Round pole to attach the U-Bolts to.
  2. 300mm - 450mm diameter mirrors: - Thread the U-Bolts around the J-Bracket and through the U-Bolt Flat Plate.
    600mm diameter mirrors: - Thread the U-Bolts through one side of the J-Bracket and then through both sides of the U-Bolt Flat Plate.
  3. Thread the Washer and Nut onto the U-Bolts and tighten.
  4. Slide the adaptor and mirror over the J-Bracket and adjust mirror to the desired position.
  5. Tighten the Grub Screw in the adaptor securely with the Allen Key supplied.
Outdoor DeLuxe U-Bolt Assembly
Outdoor DeLuxe U-Bolt Installation

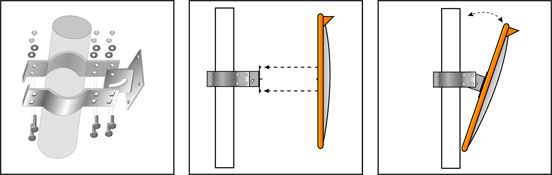

Clamp Bracket Installation Guide: (800mm - 1000mm Sizes Only)

Pole Mounting - Clamp Bracket:

  1. Decide the appropriate place to site the mirror on 75mm pole.
  2. Fix clamp and mirror mount assembly to the pole.
  3. Make sure adjustment slot is to the bottom
  4. Fix the mirror to the clamp bracket.
  5. Once the desired position has been found, tighten the bolts and nuts.
Outdoor DeLuxe Clamp Installation

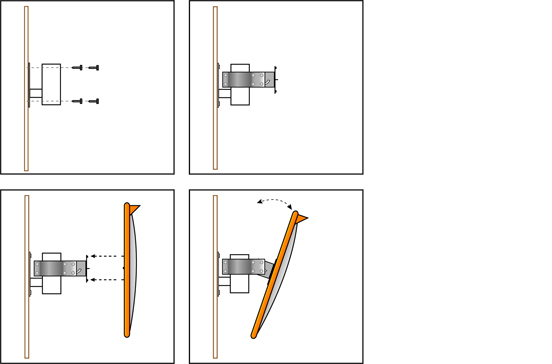

Wall Mounting - Clamp Bracket:

    NOTE: The Wall Mounting Adaptor is not included and must be purchased separately.
    For use only with 75mm Clamp Bracket (ie: 800mm - 1000mm size mirrors).

  1. Decide the appropriate place to site the mirror (on a flat surface) and fix the Wall Adaptor using suitable hardware.
  2. Fix clamp and mirror mount assembly to the Wall Adaptor making sure the slot is to the bottom.
  3. Fix the mirror face to the clamp bracket.
  4. Once the desired position has been found, tighten the bolts and nuts.
Outdoor DeLuxe Wall Adaptor Installation



Download Installation Guide pdf.



Cleaning Guide

Stainless Steel Mirror Cleaning Guide:

General Cleaning:
Bennett Mirror Technologies recommend cleanning their Stainless Steel Mirrors with soap and water and then with a soft, lint free, damp cloth.

DO NOT USE:

  • abrasives
  • acids

Polish:
Bennett Mirror Technologies does not recommend using a commercial Stainless Steel Polish, as the protective layer will leave a residue on the highly polished mirror faces. Rubbing plain white flour on a dry stainless steel mirror face with a dry cloth will polish the mirror to its original brilliance.

Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours with a suitable lacquer thinners. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.



Download Cleaning Guide pdf.



Additional Images

DeLuxe Stainless Steel Convex Mirror

DeLuxe Stainless Steel Convex Mirror

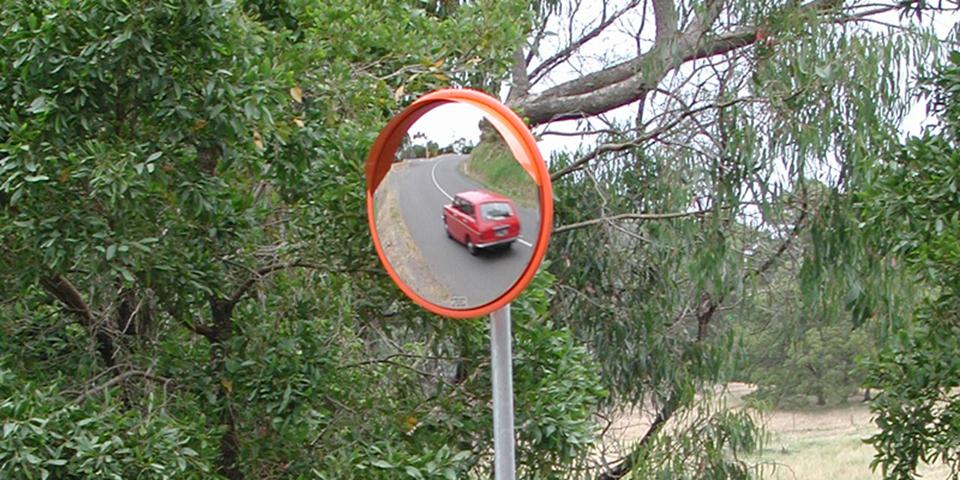

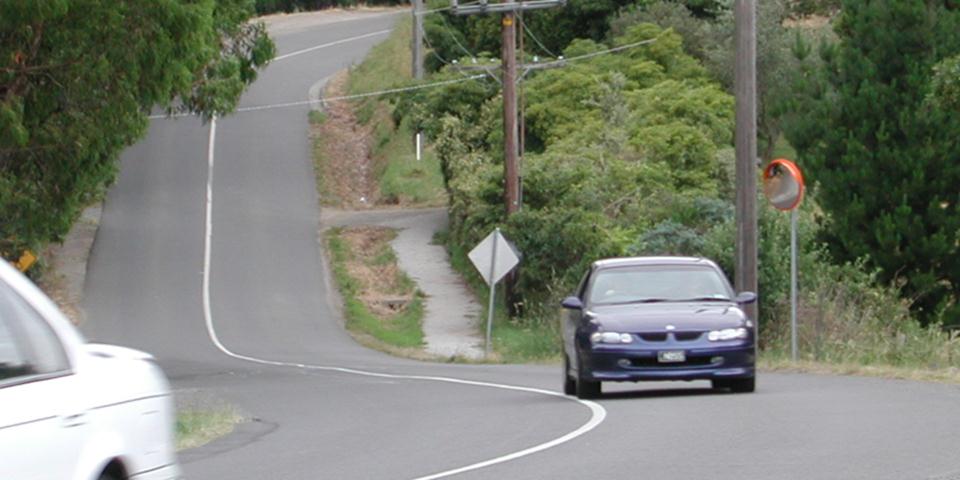

DeLuxe Stainless Steel Traffic Mirror

DeLuxe Stainless Steel Traffic Mirror

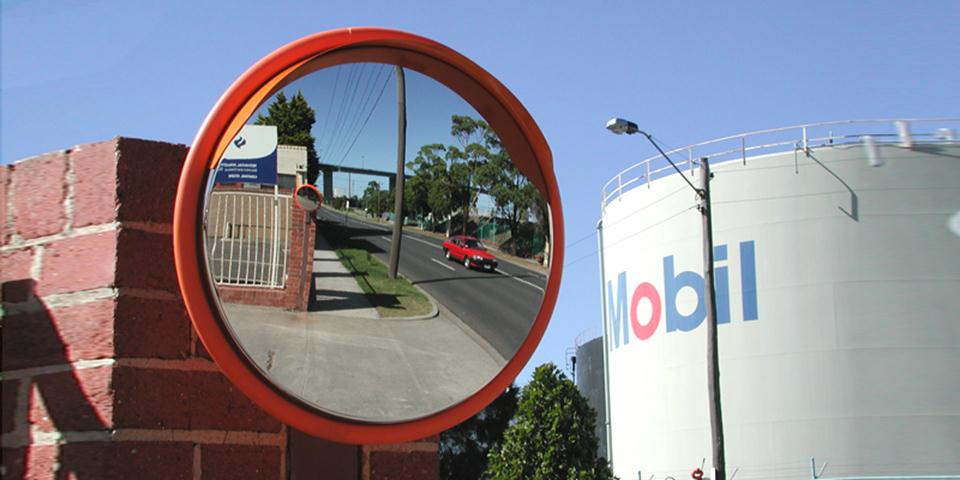

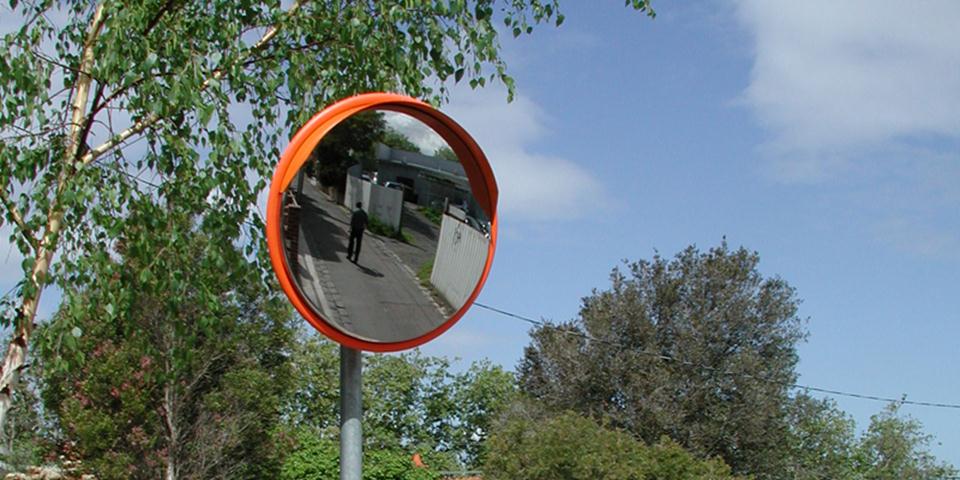

DeLuxe Stainless Steel Driveway Mirror

DeLuxe Stainless Steel Driveway Mirror

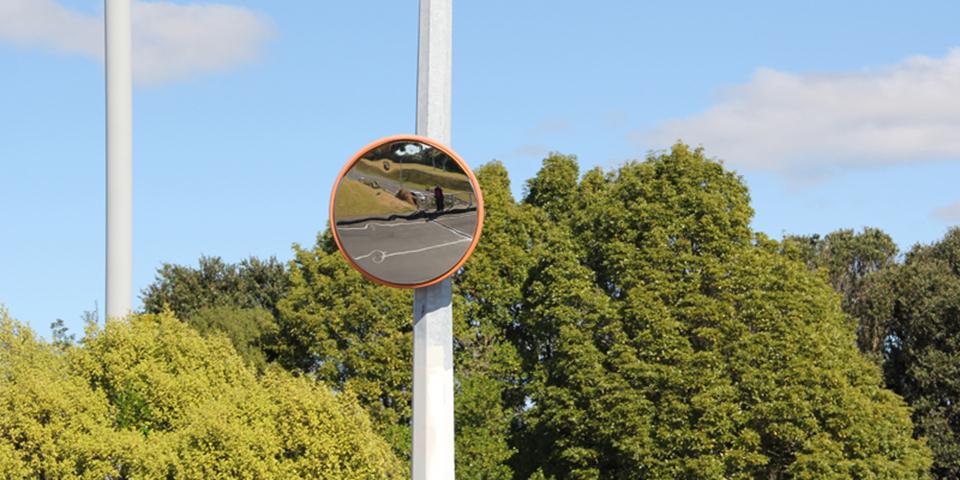

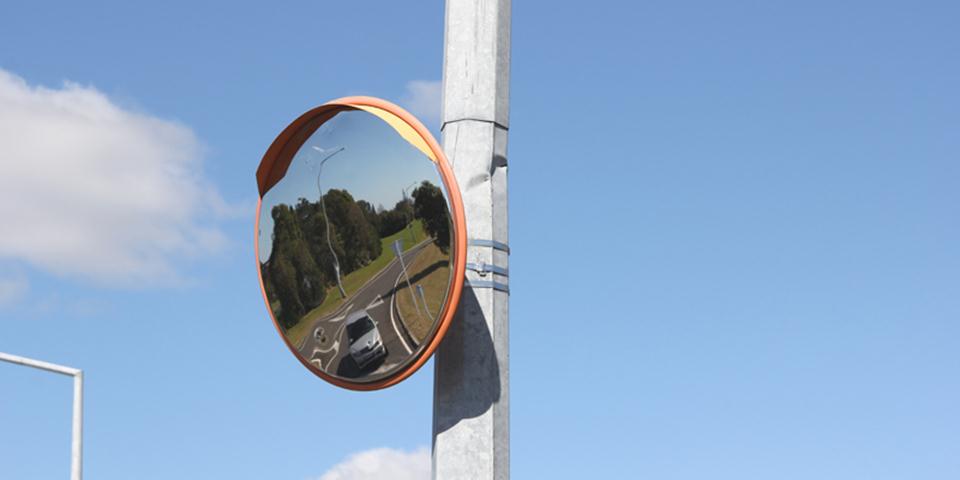

DeLuxe Stainless Steel Mirror On Pole

DeLuxe Stainless Steel Mirror On Pole

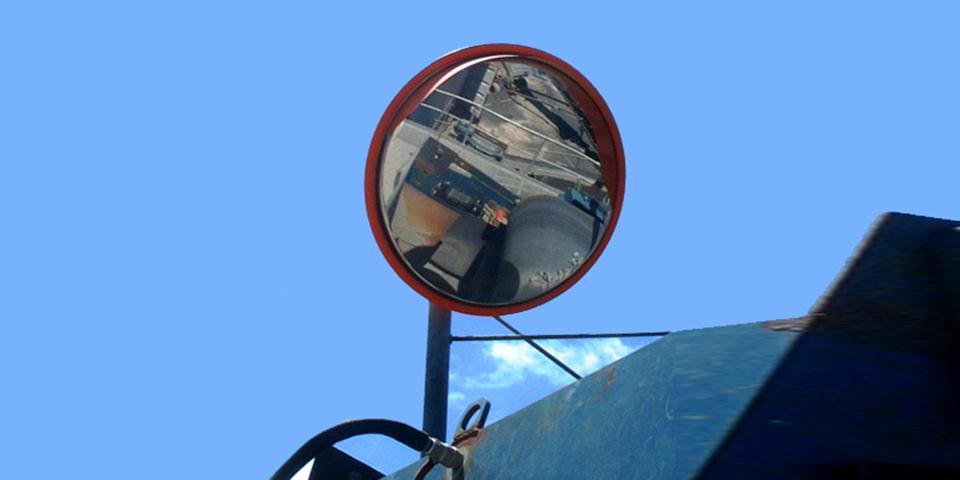

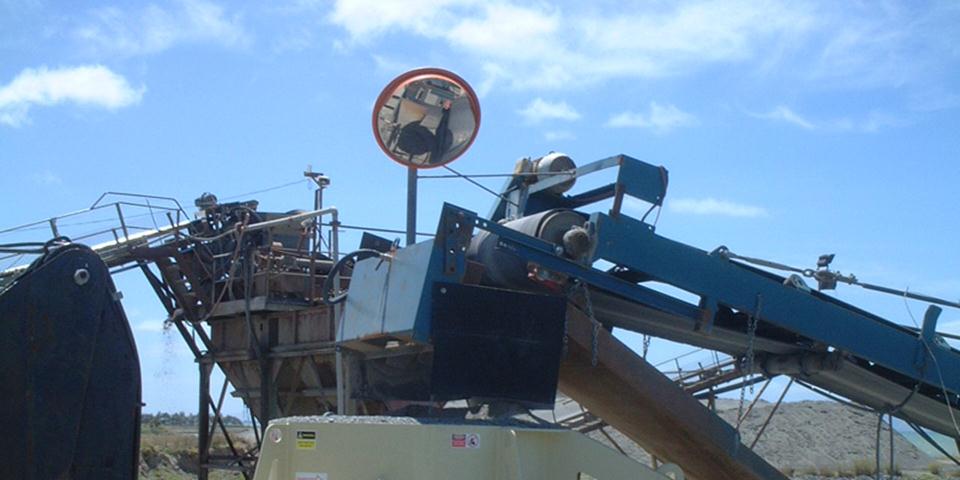

DeLuxe Stainless Steel  Mirror For Quarry

DeLuxe Stainless Steel Mirror For Quarry

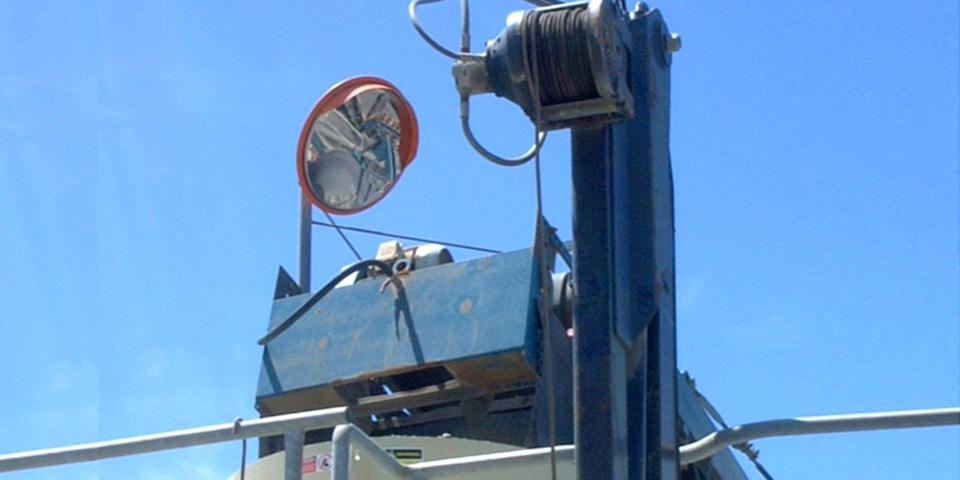

DeLuxe Stainless Steel Convex Mirror Quarry
