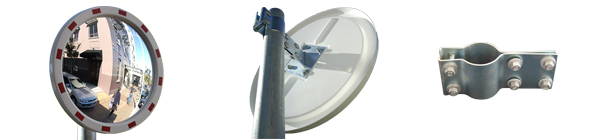

Pro Series Circular Convex Mirror Feature

Description

Outdoor Pro Series Circular Convex Mirror

When a high visibility, general purpose traffic mirror with a superior image is required, the Pro Series Circular mirror is the ideal choice. In addition the back is made from a 100% UV stabilised advanced plastic composite, ensuring superior longevity and strength. The classic styling and enhanced safety features make this the ultimate traffic mirror.



Features

  • 2mm acrylic mirror face
  • Pure reflective coating
  • Large radius of curvature for minimum distance distortion
  • Red reflective markings on the frame for greater visibility
  • Very robust post clamp bracket for easy installation
  • ASA circular frame - ASA is a robust advanced plastic impregnated with 100% UV resistance
  • Wall mounting adaptor, optional extra



Suitable Uses

  • Road and Traffic Safety
  • High Visibility
  • Driveways and Carparks
  • Outdoor Security around Buildings
  • Security Checkpoints and Border Control





Positioning

Outdoor SS Heavy Duty Traffic Position



Specifications

Product Code Size Diameter View Distance Mirror Face Mirror Back Bracket Length
18666C 600mm Up to 38m 2mm Acrylic ASA Vinyl 75mm dia. Pole Clamp
18687C 800mm Up to 46m 2mm Acryilc ASA Vinyl 75mm dia. Pole Clamp
18695C 1000mm Over 46m 2mm Acrylic ASA Vinyl 75mm dia. Pole Clamp
Product Code Size Diameter View Distance Mirror Face Mirror Back Bracket Length
68666C 24" Up to 125' 2mm Acrylic ASA Vinyl 3" dia. Pole Clamp
68687C 32" Up to 165' 2mm Acrylic ASA Vinyl 3" dia. Pole Clamp

Installation Guide

Pro Series Clamp Bracket Installation Guide:

Pole Mounting - Clamp Bracket:
  1. Decide the appropriate place to site the mirror on 75mm pole.
  2. Fix clamp and mirror mount assembly to the pole.
  3. Make sure adjustment slot is to the bottom
  4. Fix the mirror to the clamp bracket.
  5. Once the desired position has been found, tighten the bolts and nuts.
  6. Now installation is complete, remove the protective film from the mirror face.

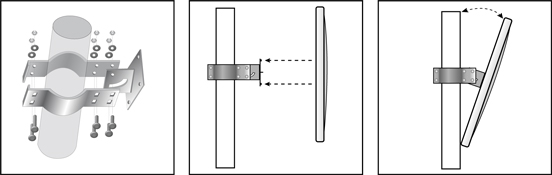

Outdoor Pro Series Clamp Installation
Wall Mounting - Clamp Bracket:
  1. Decide the appropriate place to site the mirror (on a flat surface) and fix the Wall Adaptor using suitable hardware.
  2. Fix clamp and mirror mount assembly to the Wall Adaptor making sure the slot is to the bottom.
  3. Fix the mirror face to the clamp bracket.
  4. Once the desired position has been found, tighten the bolts and nuts.
  5. Now installation is complete, remove the protective film from the mirror face.

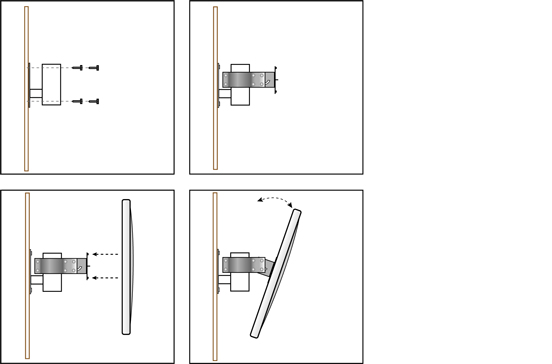

Outdoor Pro Series Wall Adaptor Installation



Download Installation Guide pdf.

Cleaning Guide

Acrylic Mirror Cleaning Guide:

General Cleaning:
DuraVisionTM recommend cleanning their acrylic mirror faces with soap and water and then with a clean, soft, lint free, damp cloth. Use a non-abrasive polish, such as Johnson’s Pledge or Mr Sheen for a clear bright reflection.

Saturate a clean soft cloth with polish, then spray the mirror face with polish. Wipe the wetted cloth over the mirror surface. With a another clean dry cloth buff the mirror face until it is clear of polish.

DO NOT USE:

  • abrasives
  • acids
  • solvents such as petrol and laquer thinners

Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours. To remove graffiti, use a non-abrasive substance such as De-Solv-it Stain Remover. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.

Scratches:
To remove scratches or repair blemishes on acrylic mirror faces only, use the following products:

  • For cleaning use NOVUS plastic polish #1
  • For fine scratches use NOVUS plastic polish #2
  • For badly scratched surfaces use NOVIS plastic polish #3 followed by #2 and #1.



Download Cleaning Guide pdf.

Additional Images

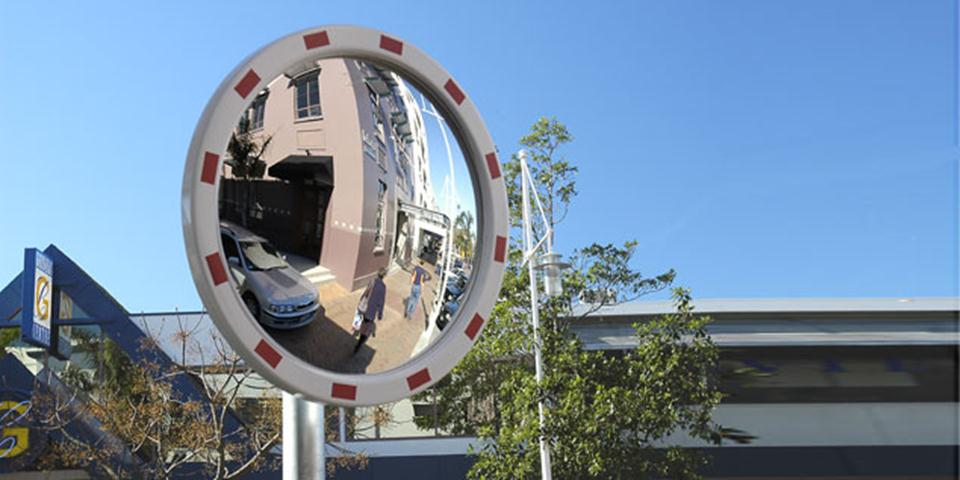

Outdoor Circular Pro Series Pedestrian Safety

Outdoor Circular Pro Series Pedestrian Safety

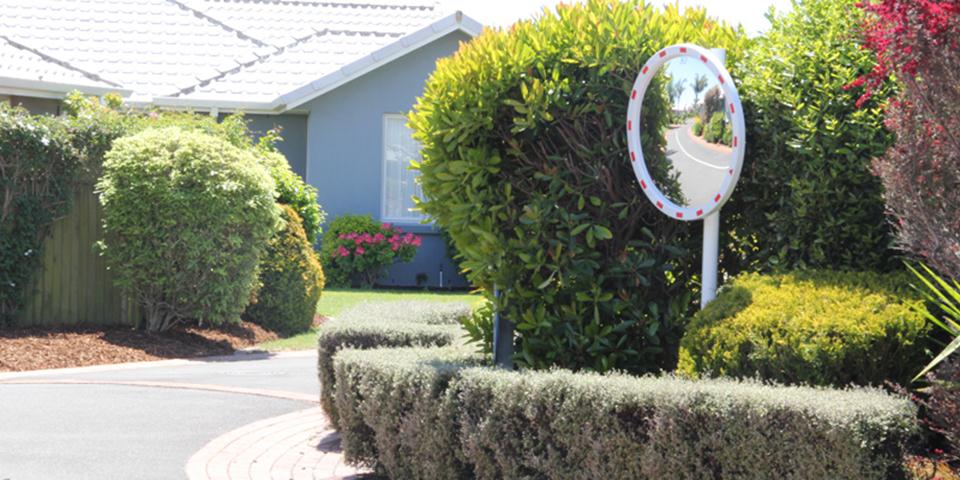

Outdoor Circular Pro Series Blind Corner

Outdoor Circular Pro Series Blind Corner

Outdoor Circular Pro Series Mirror Road Safety

Outdoor Circular Pro Series Mirror Road Safety

Reflective Traffic Mirror

Reflective Traffic Mirror
