Stainless Steel Wall Dome Feature

Description

Stainless Steel Wall Dome

The Unbreakable wall mounted dome gives 180 degrees of vision and is ideal for preventing surprise attacks and collisions in vandal prone areas. The highly polished stainless steel face will resist repeated blows. This mirror works best in areas such as subways and rail platforms, underpass locations, underground corridors and in multi-storey car parks and if attacked with graffiti or spray paint, this can be easily removed with solvents.



Features

  • .9mm 304 Stainless Steel mirror face
  • The curve is designed to maximise the viewing area for added safety
  • 7mm Plain or Counter-sunk holes to take security head fasteners
  • Can be ued with or without a frame due to the unique hole design
  • Graffiti can be easily removed
  • Scratch resistant
  • All parts of the mirror are flame proof



Suitable Uses

  • Subways and underpasses
  • Stairwells and corridors
  • Car parks
  • Train stations
  • Vandal prone areas

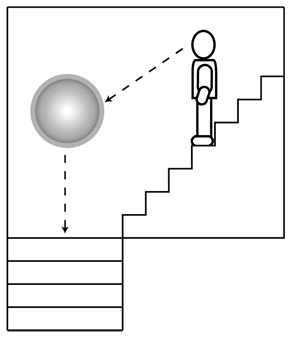

Positioning

Stainless Steel Wall Dome Position



Specifications

Product Code Size Diameter View Distance Mirror Face Mirror Back Bracket Length
16505WD 500mm Up to 30m .9mm Stianless Steel None (Plain Holes) With Frame
16505C 500mm Up to 30m .9mm Stainless Steel None (Counter-sunk Holes) None
16505 500mm Up to 30m .9mm Stainless Steel None (Plain Holes) None
Product Code Size Diameter View Distance Mirror Face Mirror Back Bracket Length
66505 20" Up to 30' .9mm Stainless Steel None (Plain Holes) None

Cleaning Guide

Stainless Steel Mirror Cleaning Guide:

General Cleaning:
DuraVision™ recommend cleaning their Stainless Steel Mirrors with soap and water and then with a soft, lint free, damp cloth.

DO NOT USE:

  • abrasives
  • acids

Polish:
DuraVision™ does not recommend using a commercial Stainless Steel Polish, as the protective layer will leave a residue on the highly polished mirror faces. Rubbing plain white flour on a dry stainless steel mirror face with a dry cloth will polish the mirror to its original brilliance.

Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours with a suitable lacquer thinners. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.



Download Cleaning Guide pdf.

Additional Images

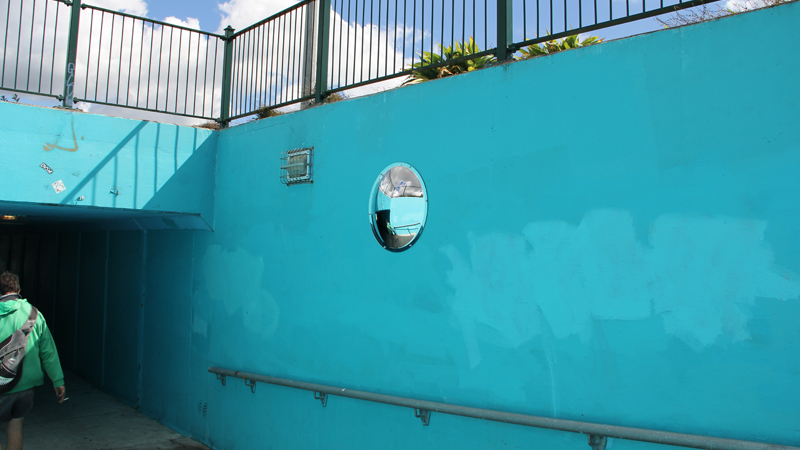

Stainless Steel Subway Mirror

Stainless Steel Subway Mirror

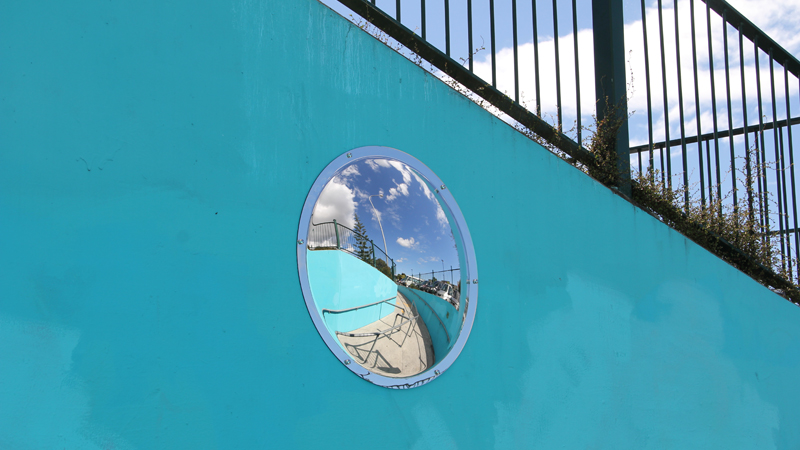

Unbreakable Anti Vandal Mirror

Unbreakable Anti Vandal Mirror

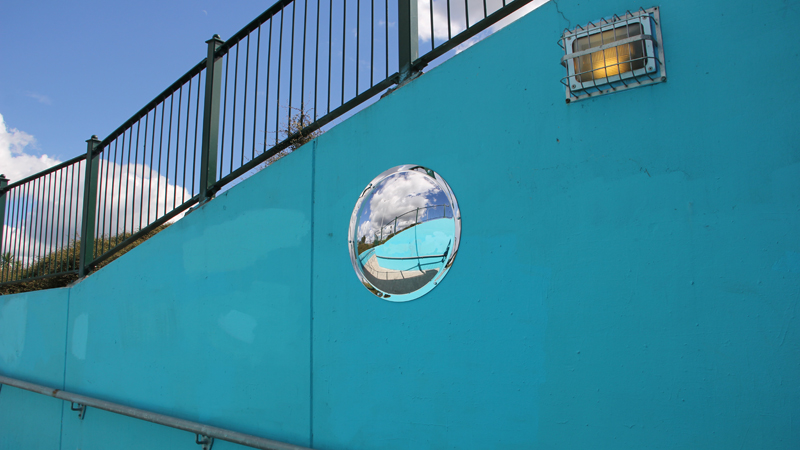

Stainless Steel Underpass Wall Dome Mirror

Stainless Steel Underpass Wall Dome Mirror

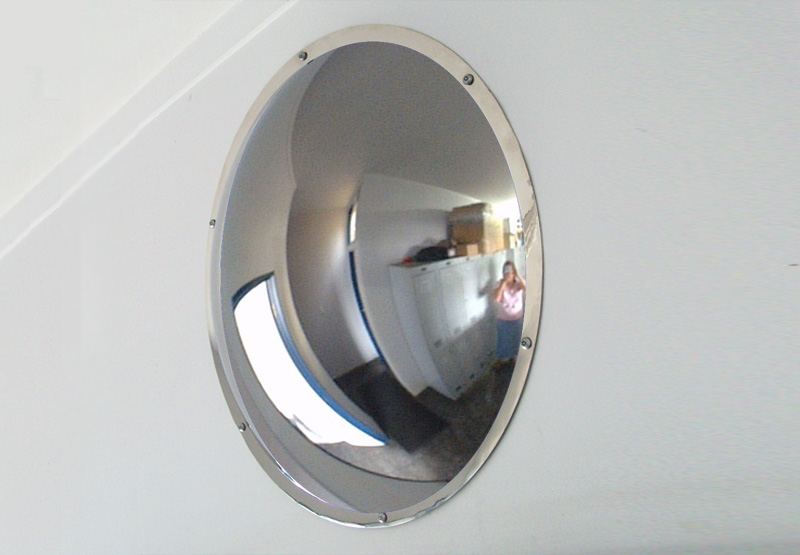

Stainless Steel Corridor Wall Dome

Stainless Steel Corridor Wall Dome

Stainless Steel Security Wall Dome

Stainless Steel Security Wall Dome
