Stainless Steel Quarter Dome Feature

Description

Quarter Dome Stainless Steel Anti-Ligature Mirror

The DuraVision Stainless Steel Quarter Dome is manufactured from highly polished mirror grade stainless steel. The Quarter Dome should be mounted at right angle corners to provide 90 degree vision to prevent surprise attacks and collisions. The Quarter Dome is ideal for use in situations where space is at a premium for a 90 degree area of reflection. The mirror is locked into the unique powder coated steel frame which ensures a virtually ligature free mirror and reduces the risk of the mirror being tampered with.



Features

  • Virtually indestructible and unbreakable mirror quality polished stainless steel face, designed to maximise the viewing area which will provide added safety
  • Counter-bore holes designed to take security head fasteners such as Rawl Spikes or Torx Screws
  • The mirror is locked into the unique steel frame which ensures the risk of the mirror being tampered with is reduced significantly.
  • Virtually a maintenance free, long lasting, unbreakable surveillance system.



Download Information Sheet pdf.



Positioning

Quarter Dome Corrections Mirror

Specifications:

Product Code Size Mirror Face View Distance Fixing Holes Frame Colour
16525HD 500mm 20" 1mm Stainless Steel Up to 5m 6 Grey

Installation Guide

Quarter Dome Stainless Steel Cell Mirror Installation

Quarter Dome Mirror

NOTE: If installing with Rawl Spikes, it is recommended to use a punch. This is to eliminate damage to the mirror face or the powder-coated frame.

OPTIONAL: Finish off by applying a bead of non-pick sealant around the mirror or frame and the wall to prevent the secretion of small objects (eg razor blades etc).



Download Installation Guide pdf.






Suggested Fastening Methods

Rawl Spike Installation

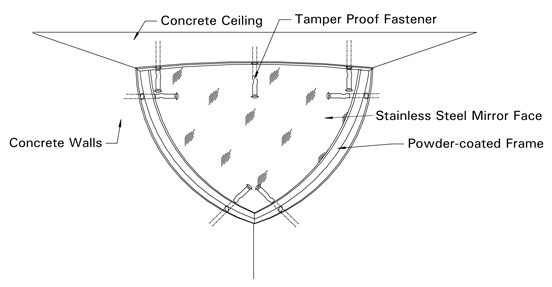

Rawls Spike PunchInstallation: Drill a hole into the base material to a depth of at least 60mm.The tolerances of the drill bit used should meet the requirements of ISO/DIN Standard 8035. Blow the hole clean of dust and other material. Drive the Spike through the appropriate mirror face hole (and frame when used) ensuring the head is sitting firmly against the mirror or frame and recessed as shown in the above diagram.

NOTE: Care should be taken not to overdrive the Spike so as to cause damage to the powder coated surface of the frame.

DuraVision Rawl Spike Punch: The DuraVision designed punch for inserting spikes can significantly reduce the risk of damaging the mirror face or frame during installation.






Torx Screw Installation

Torx ScrewInstallation: It is recommended to use a 3/16” (4.76mm) Straight Shank Tanged Bit to drill the hole. The hole must be at least 2” or 50mm overall depth and free of any debris. By using the #27, 1/4” (6.35mm) Hex Bit the special Hi-Lo thread literally taps into masonry materials. The high,sharp thread with its notched cutting edge cuts deeply and easily. The alternating low thread provides stabilty for fast, accurate driving. Torx Tamperproof masonry screws are the optimal fastening solution for use in concrete, brick, or hollow block.

Cleaning Guide

Stainless Steel Mirror Cleaning Guide:

General Cleaning:
DuraVision™ recommend cleaning their Stainless Steel Mirrors with soap and water and then with a soft, lint free, damp cloth.

DO NOT USE:

  • abrasives
  • acids

Polish:
DuraVision™ does not recommend using a commercial Stainless Steel Polish, as the protective layer will leave a residue on the highly polished mirror faces. Rubbing plain white flour on a dry stainless steel mirror face with a dry cloth will polish the mirror to its original brilliance.

Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours with a suitable lacquer thinners. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.
