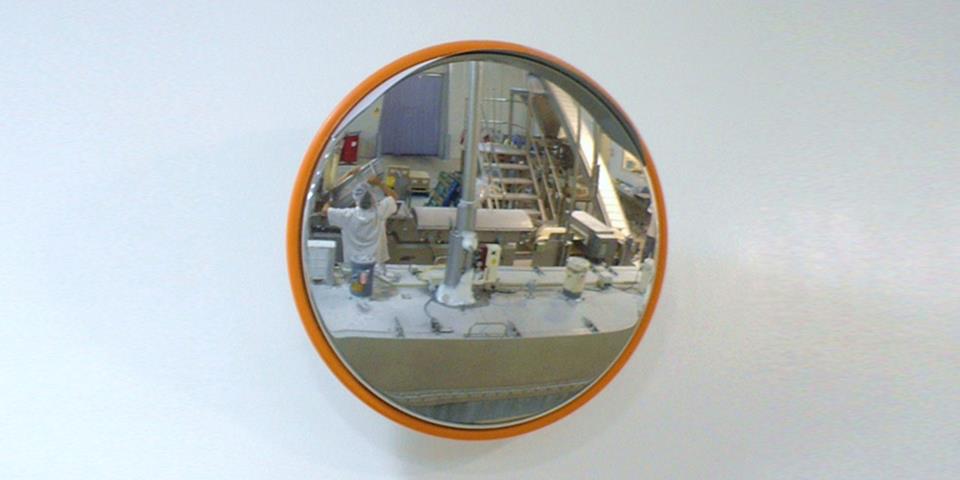

De Luxe F Series Stainless Steel Food Production Line Mirrors

Where hygiene and durability are crucial the DuraVision™ F Series offers you the ideal process monitoring solution. This mirror is made entirely of Stainless Steel, and will withstand the harshest environmental conditions and cleaning regimes.

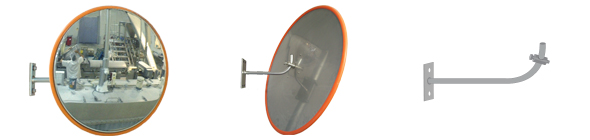

Features

Mirror quality stainless steel mirror face
Stainless steel back
Stainless steel bracket and fixings
Orange vinyl extrusion for visibility in the factory setting
Unique J-Bracket for easy installation and adjustment

Suitable Uses

Hygiene and safety environments
Monitoring processes and machinery
Harsh environmental and cleaning regimes
Strict food hygiene standards
Prevent production line blockages and jams

Download Information Sheet pdf.

Download US Information Sheet pdf.

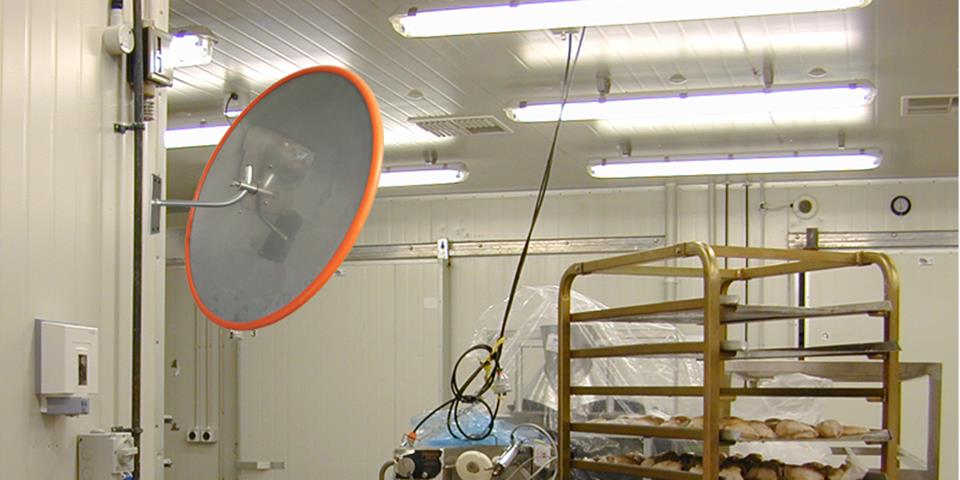

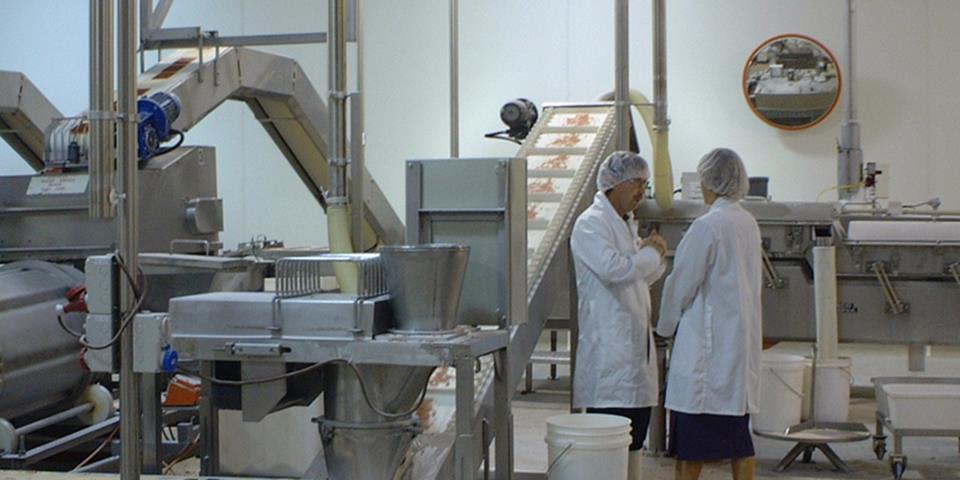

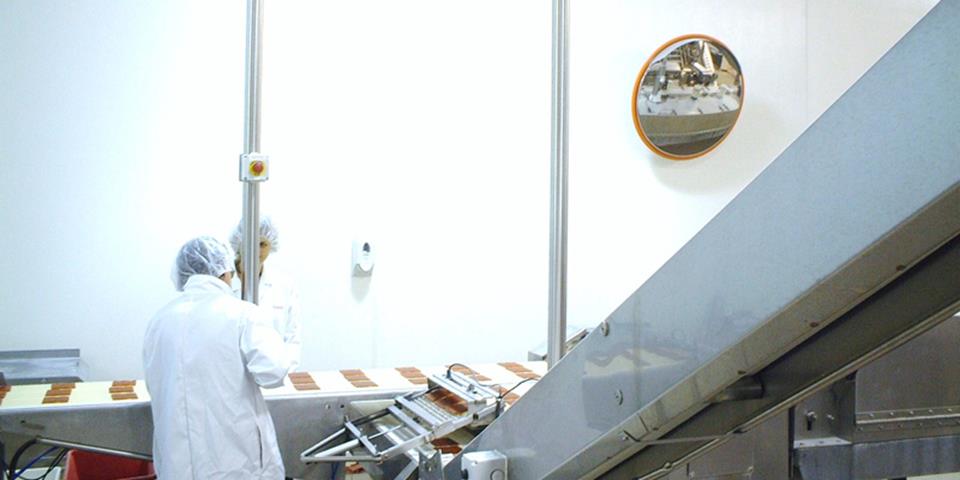

Positioning

Food Processing Mirror Position

Product Code	Size Diameter	View Distance	Mirror Face	Mirror Back	Bracket Length
16120F	300mm	Up to 23m	Stainless Steel	Stainless Steel	250mm J-Bracket
16144F	450mm	Up to 32m	Stainless Steel	Stainless Steel	250mm J-Bracket
16166F	600mm	Up to 42m	Stainless Steel	Stainless Steel	335mm J-Bracket
16187F	800mm	Up to 60m	Stainless Steel	Stainless Steel	335mm J-Bracket
16195F	1000mm	Over 60m	Stainless Steel	Stainless Steel	335mm J-Bracket

Product Code	Size Diameter	View Distance	Mirror Face	Mirror Back	Bracket Length
66120F	12"	75'	Stainless Steel	Stainless Steel	9 ¾" J-Bracket
66144F	18"	105'	Stainless Steel	Stainless Steel	9 ¾" J-Bracket
66166F	24"	138'	Stainless Steel	Stainless Steel	13" J-Bracket

Installation Guide

Food and Production Line Mirror Installation Guide:

Decide the appropriate place to site the mirror to give maximum vision.
Fix J-Bracket to wall or ceiling using suitable fixing hardware (ie: screws, bolts). Allowing enough room to get the mirror on to the J-Bracket.
Thread adaptor into the back of the mirror
Slide the adaptor and mirror over the J-Bracket and adjust mirror to the desired position.
Tighten the locking bolt on the adaptor securely.

Food Processing Mirror Installation

Download Installation Guide pdf.

Cleaning Guide

Stainless Steel Mirror Cleaning Guide:

General Cleaning:
DuraVision™ recommend cleanning their Stainless Steel Mirrors with soap and water and then with a soft, lint free, damp cloth.

DO NOT USE:

abrasives
acids

Polish:
DuraVision™ does not recommend using a commercial Stainless Steel Polish, as the protective layer will leave a residue on the highly polished mirror faces. Rubbing plain white flour on a dry stainless steel mirror face with a dry cloth will polish the mirror to its original brilliance.

Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours with a suitable lacquer thinners. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.

Download Cleaning Guide pdf.
