Description

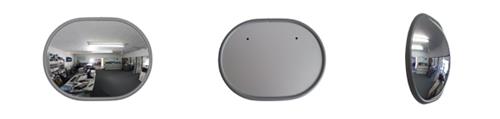

Indoor DeLuxe Flush Fit Mirror

The DeLuxe Flush Fit Wall Mirror is a non-intrusive way to achieve a wide area view of an entire room. This compact design can be mounted flat against the wall and the grey PVC surround and ACM back provides a more formal appearance in office situations. The specially designed curve gives maximum reflection without distortion.



Features

  • 2mm acrylic mirror face
  • Pure reflective coating
  • Cost effective
  • ACM Back
  • Easy to install



Suitable Uses

  • Retail and Store Security
  • Low Ceiling Areas
  • Compact Wall Space Areas
  • Office Security
  • Reception Areas
  • Visitor Detection
  • Other Indoor Observation Uses





Positioning

Indoor Flush Fit Position



Specifications

Product Code Size Diameter View Distance Mirror Face Mirror Back Bracket Length
18365FB 365x275mm Up to 6m 2mm Acrylic 4mm ACM None
18367FB 525x335mm Up to 10m 2mm Acrylic 4mm ACM None

Installation Guide

Indoor DeLuxe Flush Fit Mirror Installation Guide:

  1. Measure the distance between the two hole slots on the wall (170mm).

  2. Screw suitable wall screws into the wall making sure they are level and protruding out from the wall approx 13mm. The screw head must be no bigger than 6mm in diameter to fit through the hole.

  3. Slot the mirror onto the screws to hang.

  4. When the job is complete, totally remove the protective film from the face.

Flush Fit DeLuxe Installation

Download Installation Guide pdf.

Cleaning Guide

Acrylic Mirror Cleaning Guide:

General Cleaning:
DuraVisionTM recommend cleanning their acrylic mirror faces with soap and water and then with a clean, soft, lint free, damp cloth. Use a non-abrasive polish, such as Johnson’s Pledge or Mr Sheen for a clear bright reflection.

Saturate a clean soft cloth with polish, then spray the mirror face with polish. Wipe the wetted cloth over the mirror surface. With a another clean dry cloth buff the mirror face until it is clear of polish.

DO NOT USE:

  • abrasives
  • acids
  • solvents such as petrol and laquer thinners

Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours. To remove graffiti, use a non-abrasive substance such as De-Solv-it Stain Remover. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.

Scratches:
To remove scratches or repair blemishes on acrylic mirror faces only, use the following products:

  • For cleaning use NOVUS plastic polish #1
  • For fine scratches use NOVUS plastic polish #2
  • For badly scratched surfaces use NOVIS plastic polish #3 followed by #2 and #1.

Download Cleaning Guide pdf.
