Description
Indoor Full Dome Mirrors

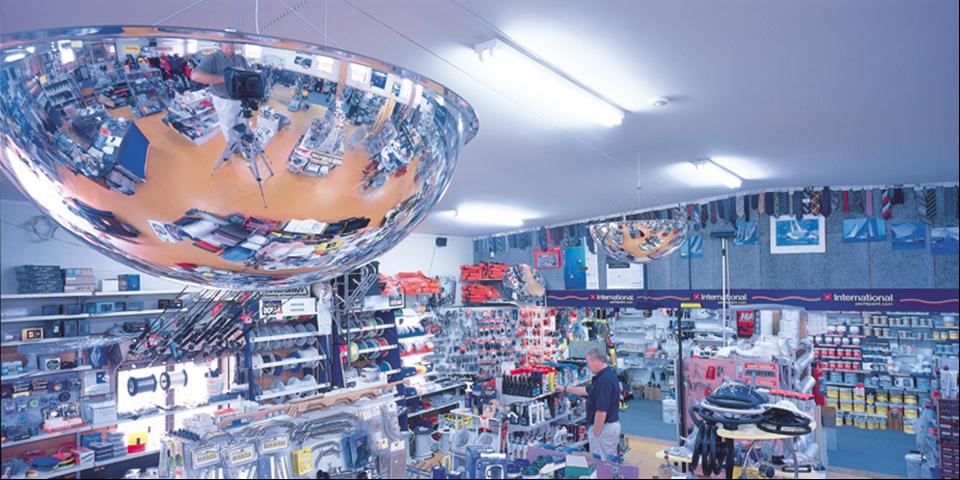

The Ceiling Dome is probably the most effective surveillance method and deterrent to retail theft due to its large 360° area of reflection. In retail areas, when strategically placed, domes can be positioned above aisles and junctions for wide area surveillance and can even be used in some areas with ceiling hung banners.

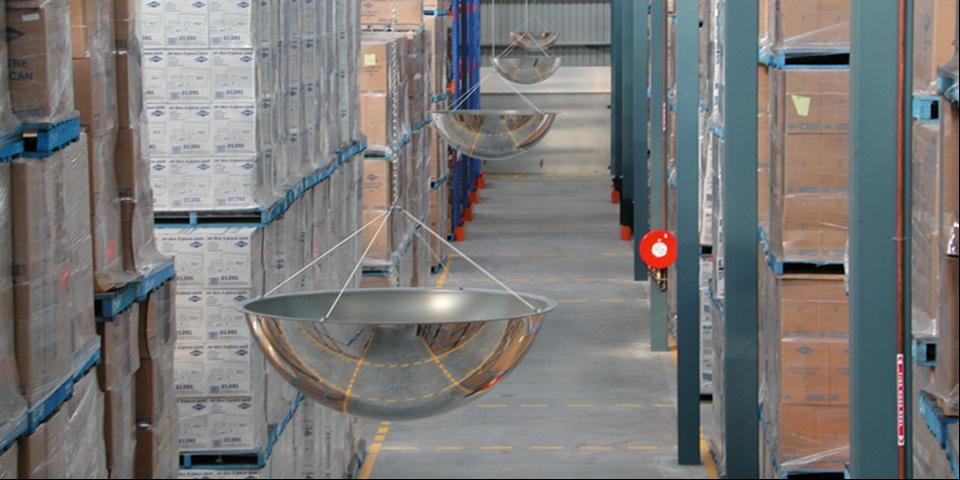

This Full Dome mirror can assist surveillance of large areas in factories and warehouses where storage and high shelving obcur the vision of staff and forklift trucks at busy intersections.

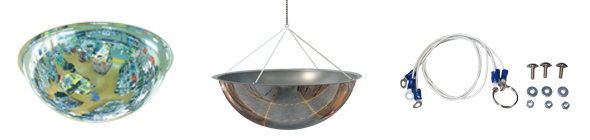

Features
- 2mm or 3mm acrylic face
- Pure reflective coating
- Dome top screws for attaching to ceiling
- Suspension kit for hanging from high ceilings
Suitable Uses
- Retail and Security

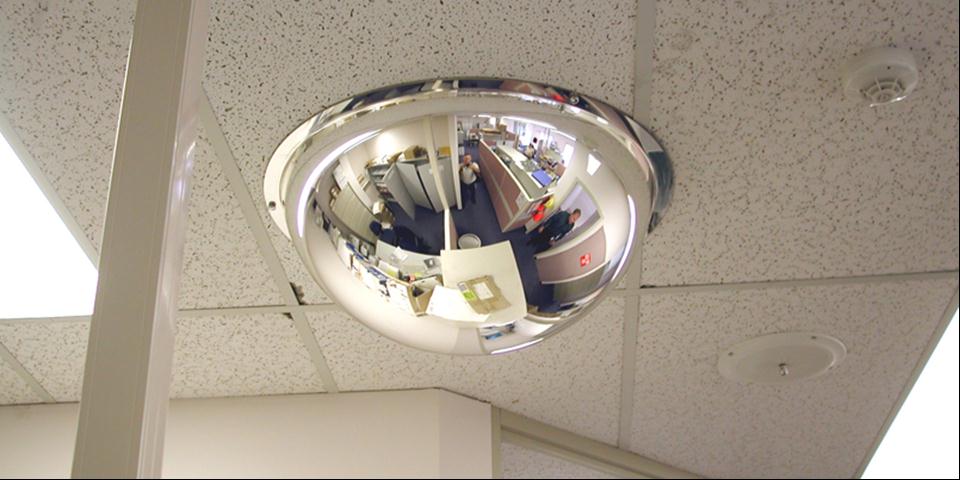

- Office Cubicle Surveillance
- Four-way intersections in buildings
- Above high shelving and isles
- Factory and warehouse crossroads
Download Information Sheet pdf.
Positioning
Specifications
| Product Code | Size Diameter | View Distance | Mirror Face | Mirror Back | Bracket Length |
|---|---|---|---|---|---|
| 18585H | 600mm | Up to 6m | 2mm Acrylic | None | None |
| 18590H | 900mm | Up to 9m | 2mm Acrylic | None | None |
| 18596H | 1200mm | Up to 16m | 3mm Acrylic | None | None |
| Product Code | Size Diameter | View Distance | Mirror Face | Mirror Back | Bracket Length |
|---|---|---|---|---|---|
| 68542H | 18" | Up 10' | 2mm Acrylic | None | None |
| 68584H | 24" | Up to 20' | 2mm Acrylic | None | None |
| 68589H | 36" | Up to 30' | 2mm Acrylic | None | None |
Installation Guide
Indoor Full Dome Convex Mirror Installation Guide:
-
Decide the appropriate place to site the mirror to give maximum vision.
-

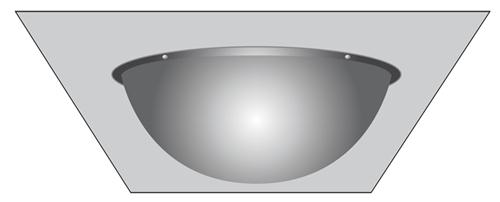

Dome capped screws are supplied for fixing directly to the ceiling.
-
After the job is complete, totally remove the protective film from the face.
In the case of a high ceiling, a suspension kit is supplied to suspend to the ultimate height.
As an indication, the ultimate height from the floor to the bottom of the dome is:
|
Size Model |
Height |
Viewing Area |
|
600mm |
2.5m |
20 - 30m2 |
|
900mm |
2.8m |
30 - 40m2 |
|
1200mm |
3.5m |
45 - 55m2 |
Cleaning Guide
Acrylic Mirror Cleaning Guide:
General Cleaning:
DuraVisionTM recommend cleanning their acrylic mirror faces with soap and water and then with a clean, soft, lint free, damp cloth. Use a non-abrasive polish, such as Johnson’s Pledge or Mr Sheen for a clear bright reflection.
Saturate a clean soft cloth with polish, then spray the mirror face with polish. Wipe the wetted cloth over the mirror surface. With a another clean dry cloth buff the mirror face until it is clear of polish.
DO NOT USE:
- abrasives
- acids
- solvents such as petrol and laquer thinners
Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours. To remove graffiti, use a non-abrasive substance such as De-Solv-it Stain Remover. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.
Scratches:
To remove scratches or repair blemishes on acrylic mirror faces only, use the following products:
- For cleaning use NOVUS plastic polish #1
- For fine scratches use NOVUS plastic polish #2
- For badly scratched surfaces use NOVIS plastic polish #3 followed by #2 and #1.
Additional Images
Indoor Full Dome Industrial
