Indoor Space Saver Convex Mirror and Fixings


Indoor Space Saver Convex Mirrors

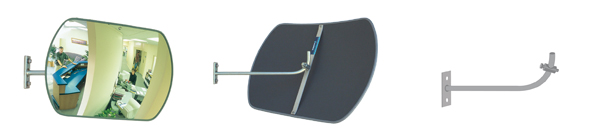

This more discrete mirror can be used where a less visually intrusive method of surveillance is required. The rectangle shaped Space Saver Mirror is also ideal in buildings with low ceilings. With no back it is lightweight and easy to install.



  • 2mm or 3mm acrylic mirror face
  • Pure reflective coating
  • Aluminium Support Bar
  • Vinyl extrusion
  • Includes J-Bracket to fix to wall or ceiling (Mounting screws Not included).


Suitable Uses

  • Retail and Store Security
  • Office Security
  • Reception Areas
  • Hospitals and Schools
  • Visitor Detection
  • Other Indoor Observation Uses



Indoor Space Saver Position



Product Code Size Diameter View Distance Mirror Face Mirror Back Bracket Length
18330A 400x600mm Up to 13m 2mm Acrylic Aluminium Bar 360mm
18332A 600x800mm Up to 17m 3mm Acrylic Aluminium Bar 360mm

Installation Guide

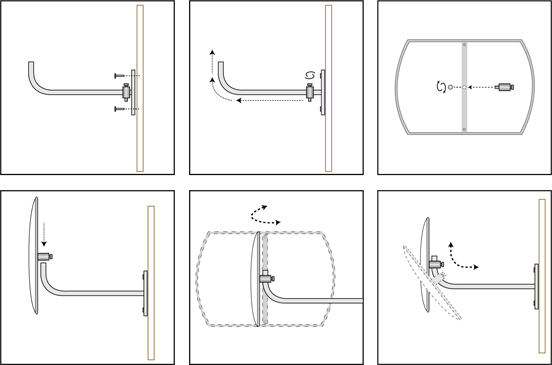

Indoor Space Saver Convex Mirror Installation Guide:

  1. Decide the appropriate place to site the mirror to give maximum vision.

  2. Fix J-Bracket to wall or ceiling using suitable fixing hardware (ie: screws, bolts). Allowing enough room to get the mirror on to the J-Bracket.

  3. Thread adaptor through the Aluminium Bar into the Hex Nut and tighten.

  4. Peel protective film off around the immediate edge of the mirror.

  5. Slide the adaptor and mirror over the J-Bracket and adjust mirror to the desired position.

  6. Tighten the locking bolt on the adaptor securely.

Indoor J Bracket Installation

Download Installation Guide pdf.

Cleaning Guide

Acrylic Mirror Cleaning Guide:

General Cleaning:
DuraVisionTM recommend cleanning their acrylic mirror faces with soap and water and then with a clean, soft, lint free, damp cloth. Use a non-abrasive polish, such as Johnson’s Pledge or Mr Sheen for a clear bright reflection.

Saturate a clean soft cloth with polish, then spray the mirror face with polish. Wipe the wetted cloth over the mirror surface. With a another clean dry cloth buff the mirror face until it is clear of polish.


  • abrasives
  • acids
  • solvents such as petrol and laquer thinners

Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours. To remove graffiti, use a non-abrasive substance such as De-Solv-it Stain Remover. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.

To remove scratches or repair blemishes on acrylic mirror faces only, use the following products:

  • For cleaning use NOVUS plastic polish #1
  • For fine scratches use NOVUS plastic polish #2
  • For badly scratched surfaces use NOVIS plastic polish #3 followed by #2 and #1.

Additional Images

Space Saver Store

Space Saver Store

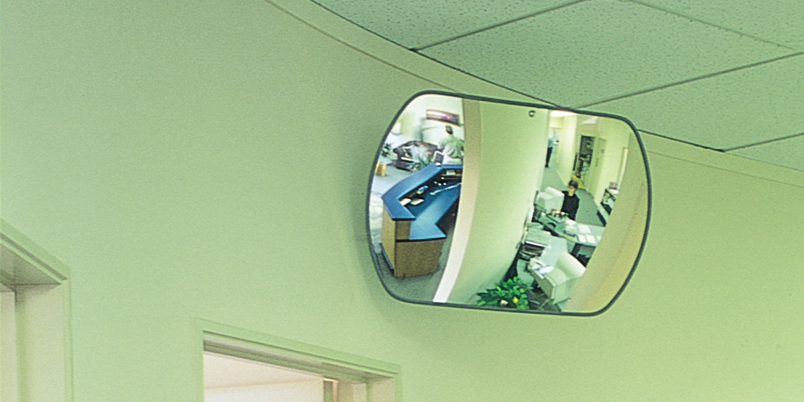

Space Saver Receiption

Space Saver Receiption

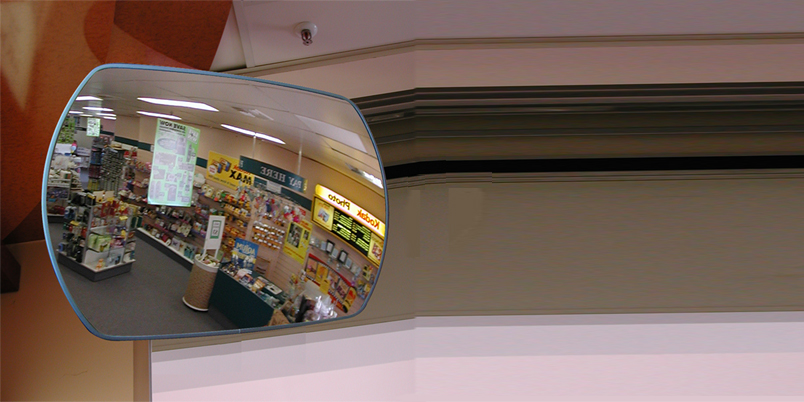

Space Saver Retail
