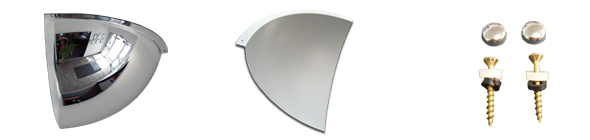

Indoor Quarter Dome Convex Mirror Feature

Description

Indoor Quarter Dome Mirrors

The Quarter Dome Mirror is suitable for corridors or internal corners where there is a high risk of collision. This long life quality mirror is simple to install and at a very competitive price.

When space is at a premium in retail stores, the Quarter Dome is fitted to the ceiling in 90o corners for optimal viewing over shelving and fixtures.



Features

  • 2mm or 3mm acrylic face
  • Pure reflective coating
  • Dome top screws for attaching to ceiling



Suitable Uses

  • Retail and Security surveillance
  • Safety in busy corridors
  • Right angle passageways in buildings
  • Reception areas
  • Above high shelving for 90o observation





Positioning

Indoor Quarter Dome Position



Specifications

Product Code Size Diameter View Distance Mirror Face Mirror Back Bracket Length
18541H 300x300mm Up to 3m 2mm Acrylic None None
18560H 450x450mm Up to 6m 2mm Acrylic None None
18563H 600x600mm Up to 10m 3mm Acrylic None None
Product Code Size Diameter View Distance Mirror Face Mirror Back Bracket Length
68541H 12" x 12" Up to 20' 2mm Acrylic None None
68559H 18" x 18" Up to 30' 2mm Acrylic None None

Installation Guide

Indoor Quarter Dome Convex Mirror Installation Guide:

  1. Decide the appropriate place to site the mirror to give maximum vision.

  2. Dome capped screws are supplied for fixing directly to the corner ceiling.

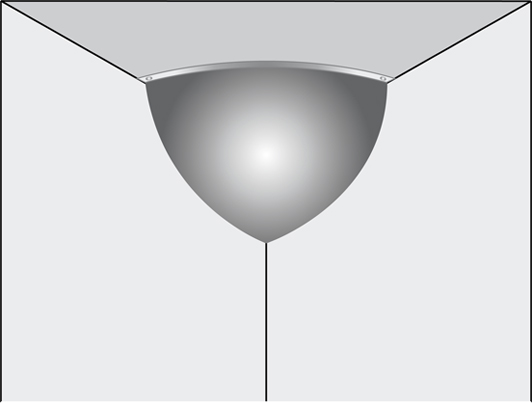

  3. Indoor Quarter Dome Fixed
  4. After installation is complete, totally remove the protective film from the face.



Download Installation Guide pdf.

Cleaning Guide

Acrylic Mirror Cleaning Guide:

General Cleaning:
DuraVisionTM recommend cleanning their acrylic mirror faces with soap and water and then with a clean, soft, lint free, damp cloth. Use a non-abrasive polish, such as Johnson’s Pledge or Mr Sheen for a clear bright reflection.

Saturate a clean soft cloth with polish, then spray the mirror face with polish. Wipe the wetted cloth over the mirror surface. With a another clean dry cloth buff the mirror face until it is clear of polish.

DO NOT USE:

  • abrasives
  • acids
  • solvents such as petrol and laquer thinners

Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours. To remove graffiti, use a non-abrasive substance such as De-Solv-it Stain Remover. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.

Scratches:
To remove scratches or repair blemishes on acrylic mirror faces only, use the following products:

  • For cleaning use NOVUS plastic polish #1
  • For fine scratches use NOVUS plastic polish #2
  • For badly scratched surfaces use NOVIS plastic polish #3 followed by #2 and #1.



Download Cleaning Guide pdf.

Additional Images

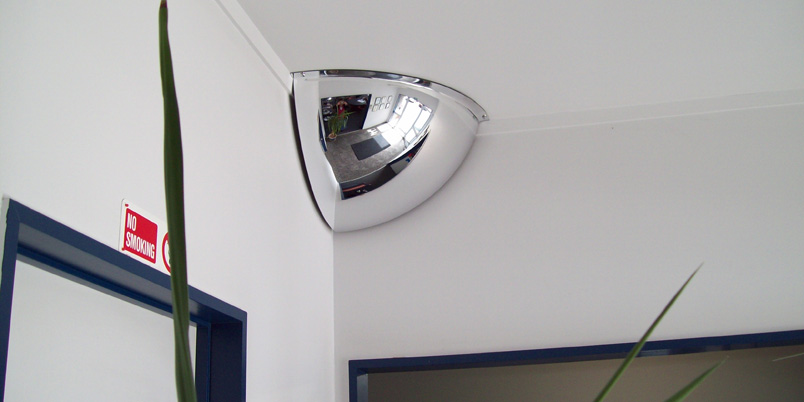

Indoor Qaurter Dome Receiption

Indoor Qaurter Dome Receiption

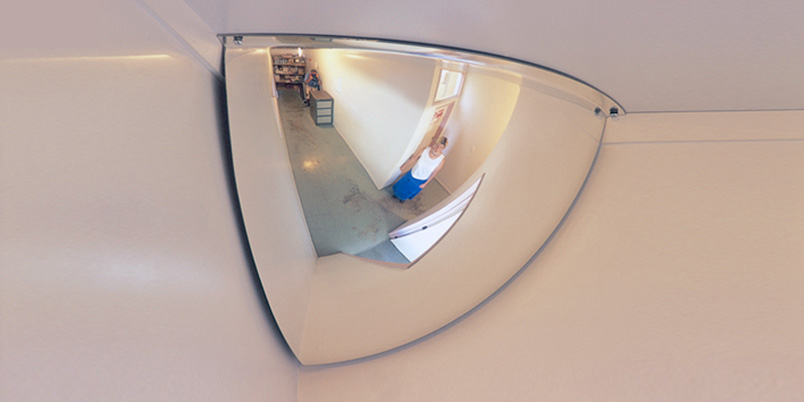

Indoor Quarter Dome Safety

Indoor Quarter Dome Safety

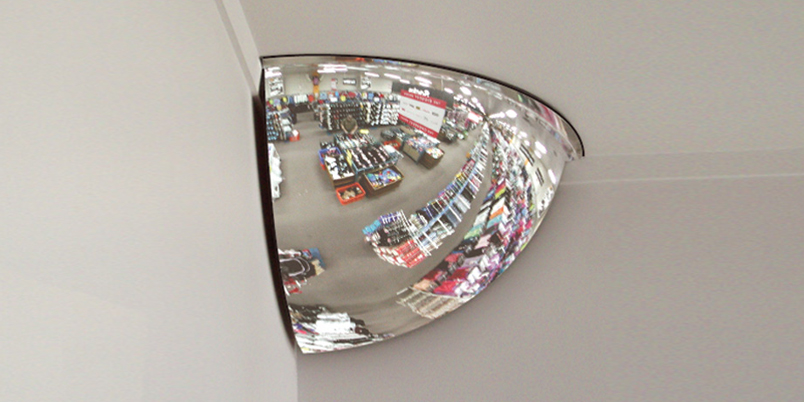

Indoor Quarter Dome Retail

Indoor Quarter Dome Retail
