Heavy Duty Stainless Steel COnvex Mirror Feature

Description

Heavy Duty Stainless Steel Convex Mirror

The unbreakable stainless steel Heavy Duty convex mirror is ideal in situations where vandalism is a problem. This tough and durable mirror can withstand hard knocks in industrial situations or where projectile objects, such as rocks, are an issue. Complete with a fully adjustable wall mounting bracket (optional pole mounting accessories are available) which is easy to install and allows the mirror to be angled in the most effective position. The mirror face is made from 304 grade 18 gauge highly poslished stainless steel for a bright, clear reflection with no distortion. Best suited for industrial and outdoor situations where extreme weather is not experienced.

Click HERE to watch our YouTube video featuring Stainless Steel Mirrors.



Features

  • Unbreakable stainless steel mirror face
  • Vinyl celuka back
  • Vinyl extrusion
  • Includes Outdoor J-Bracket to fix to wall or ceiling
  • Wall Mounting screws Not included
  • Pole mounting kit available



Suitable Uses

  • Industrial Safety
  • Vandal Prone Areas
  • Driveways and Carparks
  • Outdoor Security around Buildings
  • Security Checkpoints and Boarder Control
  • Livestock Observation and Heat Detection - View Brochure




Download Information Sheet pdf. Download US Information Sheet pdf.


Positioning

Outdoor SS Heavy Duty Safety Position

Outdoor SS Heavy Duty Traffic Position



Specifications

Product Code Size Diameter View Distance Mirror Face Mirror Back Bracket Length
16062S 600mm Up to 42m Stainless Steel 10mm Vinyl 335mm
16087S 800mm Up to 60m Stainless Steel 10mm Vinyl 435mm
16445S 1000mm Up to 65m Stainless Steel 10mm Vinyl 435mm
Product Code Size Diameter View Distance Mirror Face Mirror Back Bracket Length
66062S 24" Up to 140' Stainless Steel 10mm Vinyl 13"
66087S 32" Up to 200' Stainless Steel 10mm Vinyl 17"
66445S 40" Over 200' Stainless Steel 10mm Vinyl 17"

Installation Guide

Heavy Duty Convex Mirror Installation Guide:

  1. Decide the appropriate place to site the mirror to give maximum vision.

  2. Fix J-Bracket to wall or ceiling using suitable fixing hardware (ie: screws, bolts). Allowing enough room to get the mirror on to the J-Bracket.

  3. Thread adaptor into the back of the mirror

  4. Slide the adaptor and mirror over the J-Bracket and adjust mirror to the desired position.

  5. Tighten the locking bolt on the adaptor securely.

Outdoor J Bracket Installation

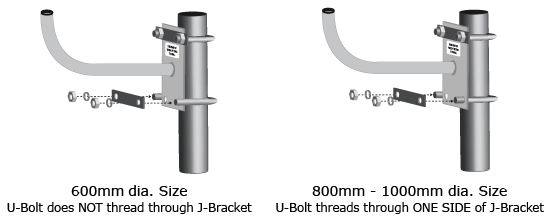

Optional Pole Mounting: (NOTE: U-Bolts are optional and must be purchased separately)

  1. Choose a 60mm or 75mm Round pole to attach the U-Bolts to.

  2. 600mm Dia. Size Mirror: Thread the U-Bolts around the J-Bracket and then through both sides of the U-Bolt Flat Plate.

  3. 800mm - 1000mm Dia. Size Mirrors: Thread the U-Bolts through one side of the J-Bracket and then through both sides of the U-Bolt Flat Plate.

  4. Thread the Washer and Nut onto the U-Bolts and tighten.

  5. Thread adaptor into the back of the mirror

  6. Slide the adaptor and mirror over the J-Bracket and adjust mirror to the desired position.

  7. Tighten the locking bolt on the adaptor securely.

Outdoor U-Bolt Installation

Outdoor U-Bolt Installation



Download Installation Guide pdf.

Cleaning Guide

Stainless Steel Mirror Cleaning Guide:

General Cleaning:
DuraVision™ recommend cleaning their Stainless Steel Mirrors with soap and water and then with a soft, lint free, damp cloth.

DO NOT USE:

  • abrasives
  • acids

Polish:
DuraVision™ does not recommend using a commercial Stainless Steel Polish, as the protective layer will leave a residue on the highly polished mirror faces. Rubbing plain white flour on a dry stainless steel mirror face with a dry cloth will polish the mirror to its original brilliance.

Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours with a suitable lacquer thinners. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.



Download Cleaning Guide pdf.

Additional Images

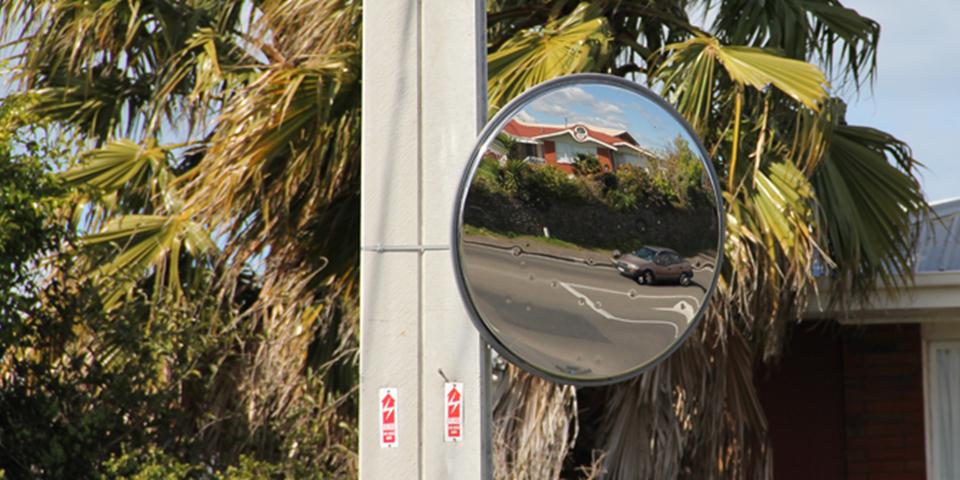

Heavy Duty Stainless Steel Mirror With Bullet Marks

Heavy Duty Stainless Steel Mirror With Bullet Marks

Heavy Duty Stainless Steel Mirror Blind Corner

Heavy Duty Stainless Steel Mirror Blind Corner

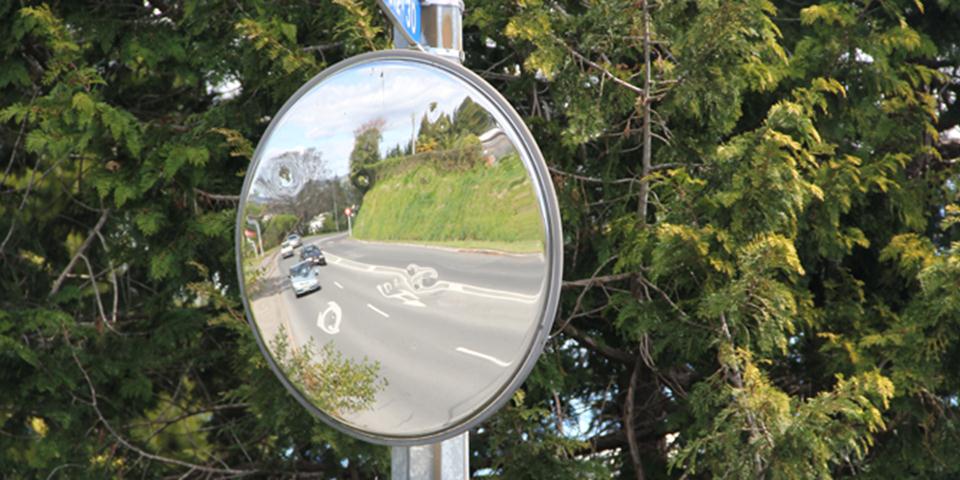

Heavy Duty Stainless Steel Mirror With Bullet Holes

Heavy Duty Stainless Steel Mirror With Bullet Holes

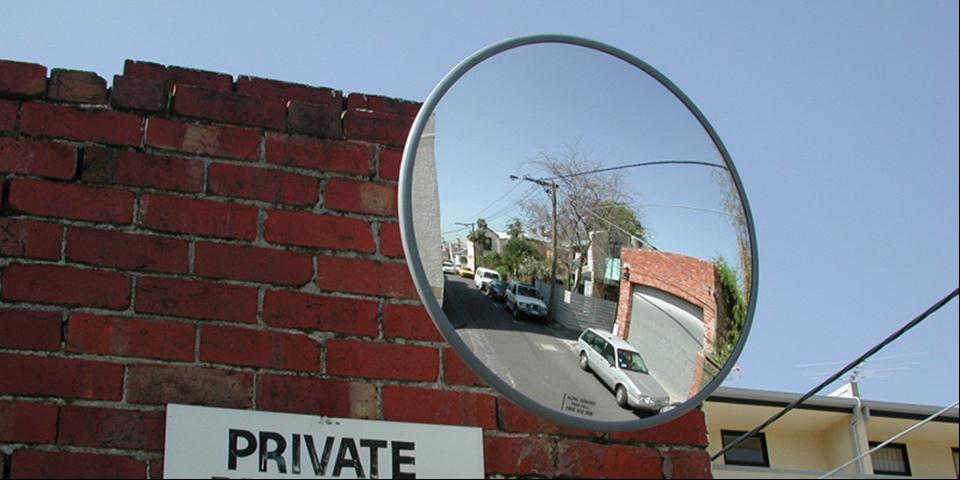

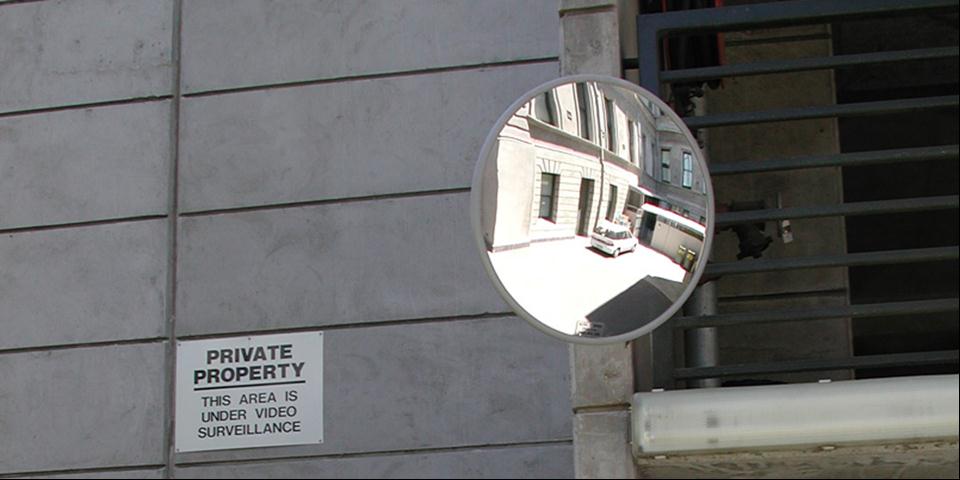

Outdoor Car Park Mirror

Outdoor Car Park Mirror

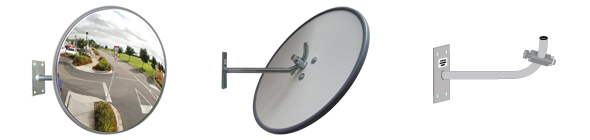

Heavy Duty SS

Heavy Duty SS

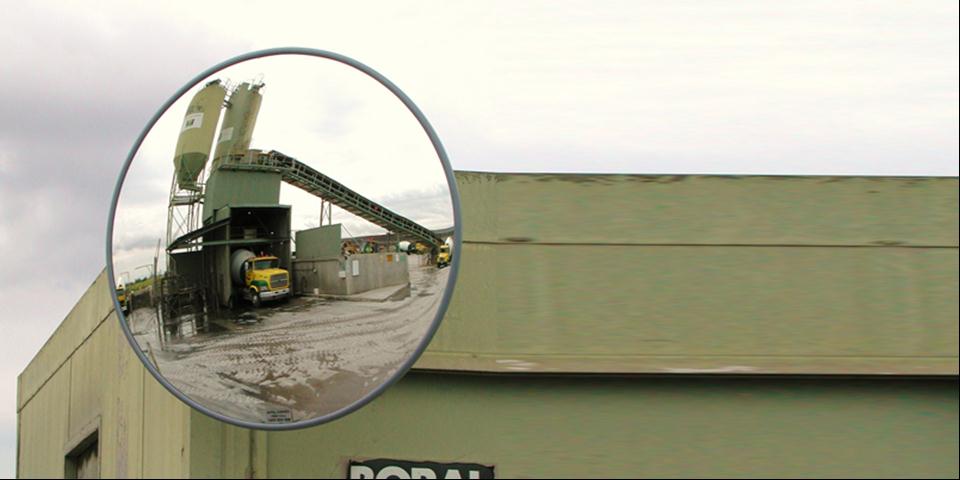

Stainless Steel Outdoor mirror

Stainless Steel Outdoor mirror
