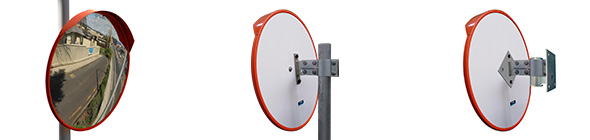

Outdoor DeLuxe Acrylic Convex Mirror Feature

Description

Outdoor Deluxe Acrylic Convex Mirror

The DeLuxe acrylic convex mirror is scientifically designed to optimise a drivers field of vision and minimise distance distortions making this model ideal for traffic and road situations. The shallower curve of the mirror face means you can observe high speed traffic much more safely. The DeLuxe model can be strategically positioned anywhere a driver’s field of vision is obstructed, such as blind corners, a concealed entry or exit and hard to see intersections. The galvanised steel clamp bracket is designed for pole mounting. A wall mounting adaptor is also available to fix the mirror to a flat surface.



Features

  • 3mm acrylic mirror face
  • Pure reflective coating
  • Large radius of curvature for minimum distance distortion
  • Orange powder coated galvanised steel back and hood
  • Orange vinyl extrusion
  • Outdoor strength pole mount fittings to fit 75mm dia. pole
  • Wall mounting adaptor available for clamp style bracket



Suitable Uses

  • Road and Traffic Safety
  • Harsh Weather Conditions
  • Driveways and Carparks
  • Outdoor Security aound Buildings
  • Security Checkpoints and Border Control



Download Information Sheet pdf.



Positioning

Outdoor SS Heavy Duty Traffic Position



Specifications

Product Code Size Diameter View Distance Mirror Face Mirror Back Bracket Length
18066J 600mm Up to 38m 3mm Acrylic Powder Coated Steel 270mm J-Bracket and 75mm dia. U-Bolts
18087C 800mm Up to 50m 3mm Acrylic Powder Coated Steel 75mm dia. Pole Clamp
18445C 1000mm Over 55m 3mm Acrylic Powder Coated Steel 75mm dia. Pole Clamp

Installation Guide

DeLuxe J-Bracket Installation Guide: (600mm Size Only)

Wall Mounting - J Bracket:
  1. Decide the appropriate place to site the mirror to give maximum vision.
  2. Fix J-Bracket to wall or ceiling using suitable fixing hardware (ie: screws, bolts). Allowing enough room to get the mirror on to the J-Bracket.
  3. Slide the adaptor and mirror over the J-Bracket and adjust mirror to the desired position.
  4. Tighten the Grub Screw in the adaptor securely with the Allen Key supplied.
  5. Now installation is complete, remove the protective film from the mirror face.
Outdoor J Bracket Installation
Pole Mounting with U-Bolts:
  1. Choose a 75mm Round pole to attach the U-Bolts to.
  2. Thread the U-Bolts through one side of the J-Bracket and then through both sides of the U-Bolt Flat Plate.
  3. Thread the Washer and Nut onto the U-Bolts and tighten.
  4. Slide the adaptor and mirror over the J-Bracket and adjust mirror to the desired position.
  5. Tighten the Grub Screw in the adaptor securely with the Allen Key supplied and remove protective film.
Outdoor DeLuxe U-Bolt Assembly
Outdoor DeLuxe U-Bolt Installation

Clamp Bracket Installation Guide: (800mm - 1000mm Sizes Only)

Pole Mounting - Clamp Bracket:
  1. Decide the appropriate place to site the mirror on 75mm pole.
  2. Fix clamp and mirror mount assembly to the pole.
  3. Make sure adjustment slot is to the bottom
  4. Fix the mirror to the clamp bracket.
  5. Once the desired position has been found, tighten the bolts and nuts.
  6. Now installation is complete, remove the protective film from the mirror face.
Outdoor DeLuxe Clamp Installation
Wall Mounting - Clamp Bracket:
    NOTE: The Wall Mounting Adaptor is not included and must be purchased separately.
    For use only with 75mm Clamp Bracket (ie: 800mm - 1000mm size mirrors).
  1. Decide the appropriate place to site the mirror (on a flat surface) and fix the Wall Adaptor using suitable hardware.
  2. Fix clamp and mirror mount assembly to the Wall Adaptor making sure the slot is to the bottom.
  3. Fix the mirror face to the clamp bracket.
  4. Once the desired position has been found, tighten the bolts and nuts.
  5. Now installation is complete, remove the protective film from the mirror face.
Outdoor DeLuxe Wall Adaptor Installation



Download Installation Guide pdf.

Cleaning Guide

Acrylic Mirror Cleaning Guide:

General Cleaning:
DuraVisionTM recommend cleanning their acrylic mirror faces with soap and water and then with a clean, soft, lint free, damp cloth. Use a non-abrasive polish, such as Johnson’s Pledge or Mr Sheen for a clear bright reflection.

Saturate a clean soft cloth with polish, then spray the mirror face with polish. Wipe the wetted cloth over the mirror surface. With a another clean dry cloth buff the mirror face until it is clear of polish.

DO NOT USE:

  • abrasives
  • acids
  • solvents such as petrol and laquer thinners

Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours. To remove graffiti, use a non-abrasive substance such as De-Solv-it Stain Remover. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.

Scratches:
To remove scratches or repair blemishes on acrylic mirror faces only, use the following products:

  • For cleaning use NOVUS plastic polish #1
  • For fine scratches use NOVUS plastic polish #2
  • For badly scratched surfaces use NOVIS plastic polish #3 followed by #2 and #1.



Download Cleaning Guide pdf.

Additional Images

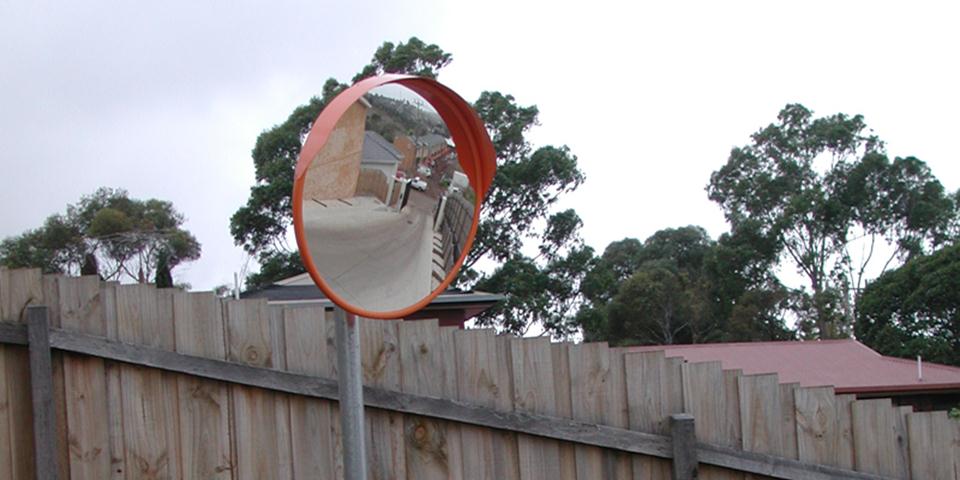

Outdoor DeLuxe Acrylic Driveways

Outdoor DeLuxe Acrylic Driveways

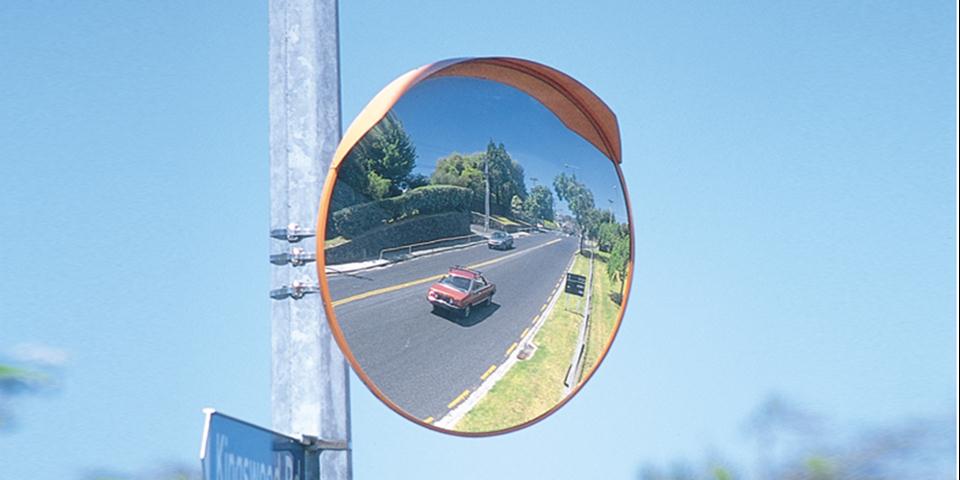

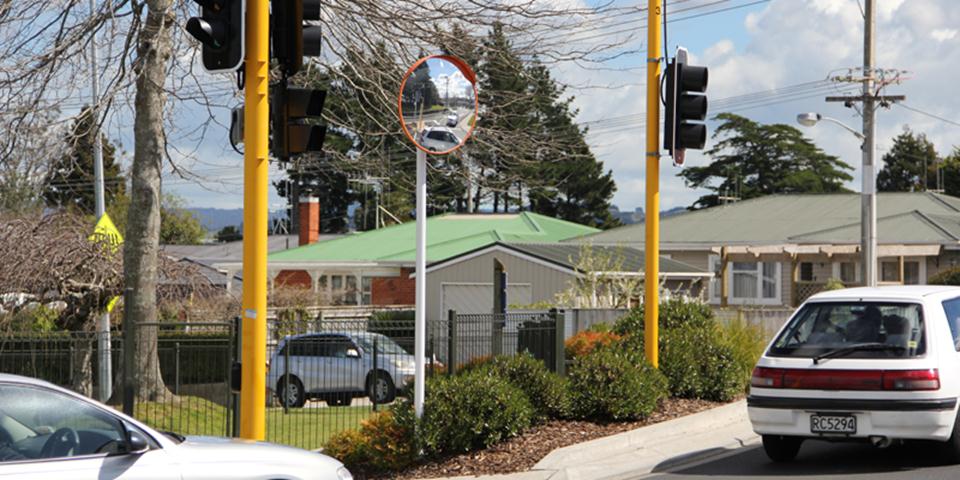

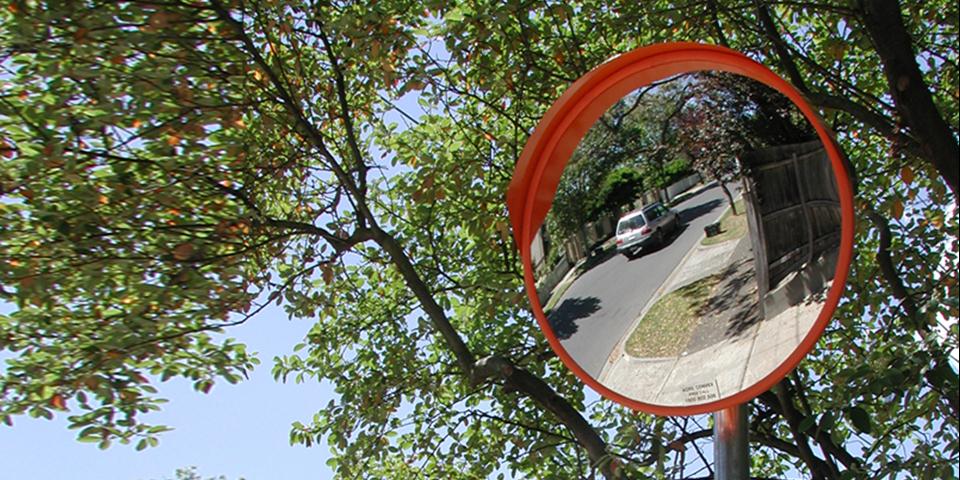

Outdoor DeLuxe Acrylic Road Traffic

Outdoor DeLuxe Acrylic Road Traffic

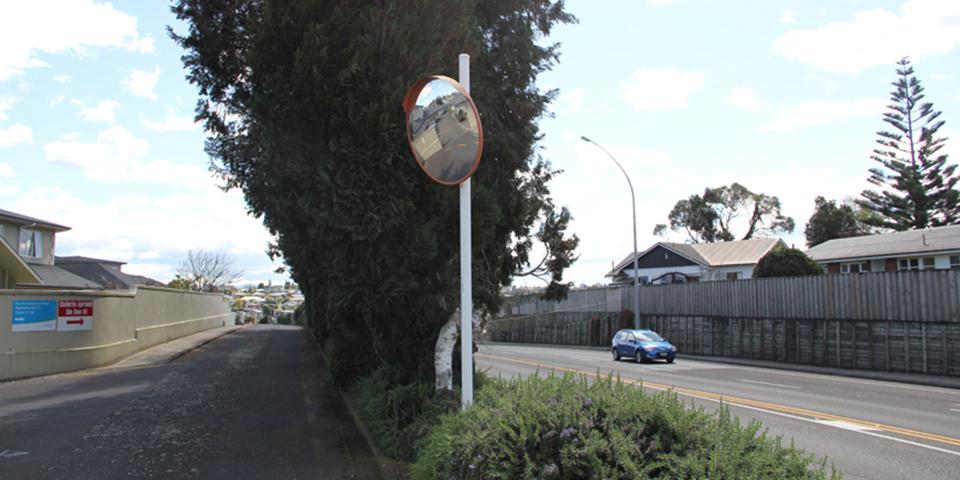

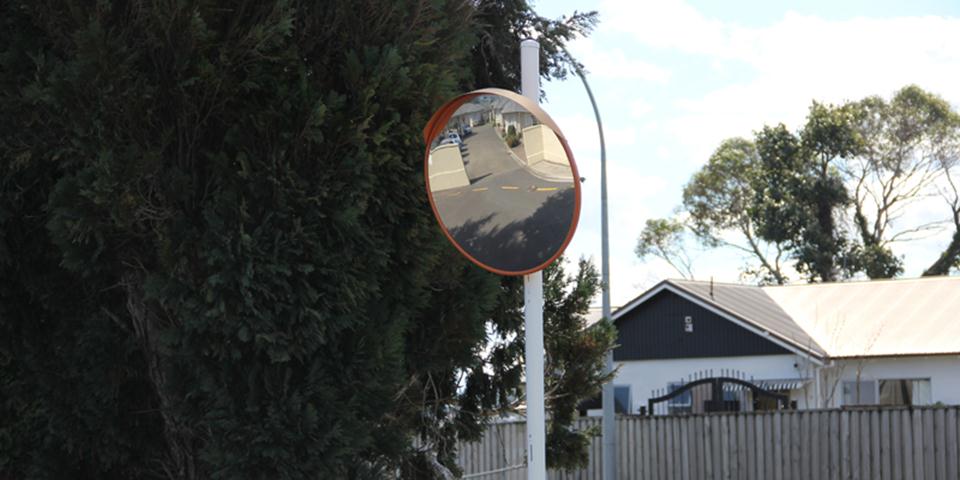

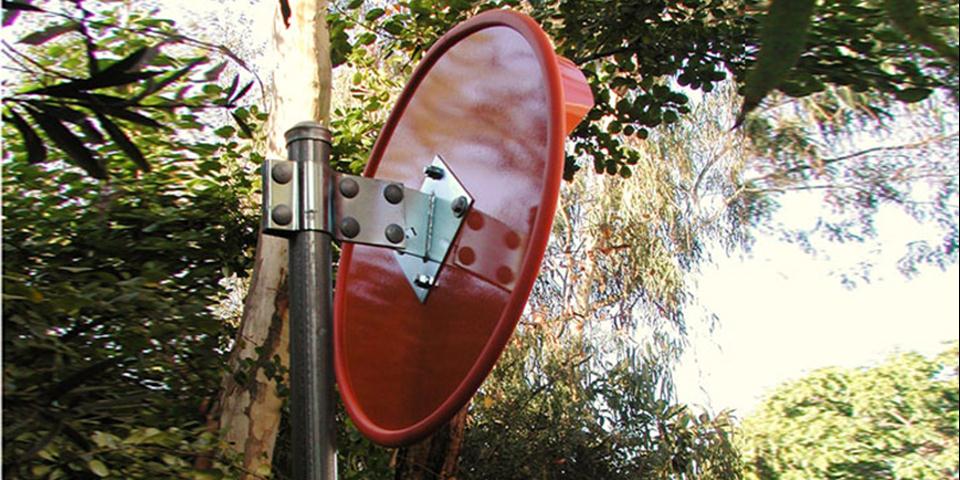

Outdoor DeLuxe Acrylic Entrance

Outdoor DeLuxe Acrylic Entrance

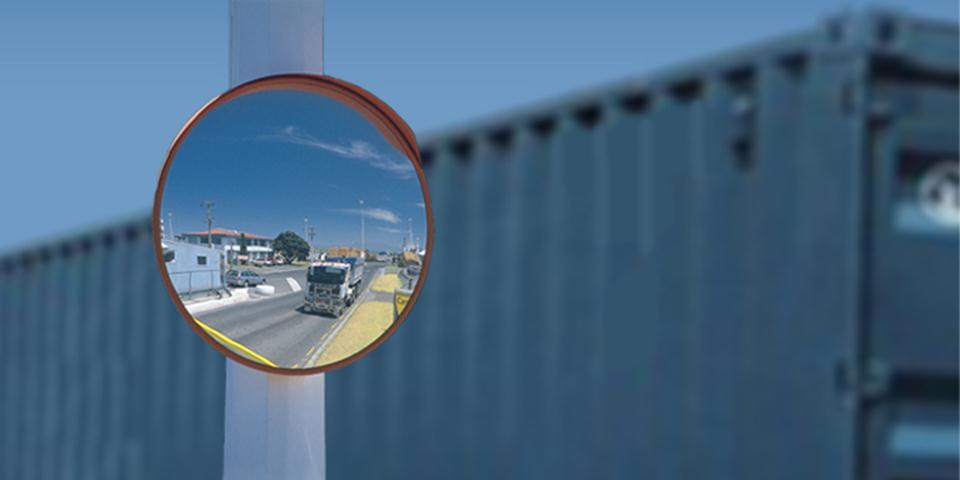

DeLuxe Acrylic Safety Mirror

DeLuxe Acrylic Safety Mirror

DeLuxe Acrylic Steep Driveway Mirror

DeLuxe Acrylic Steep Driveway Mirror

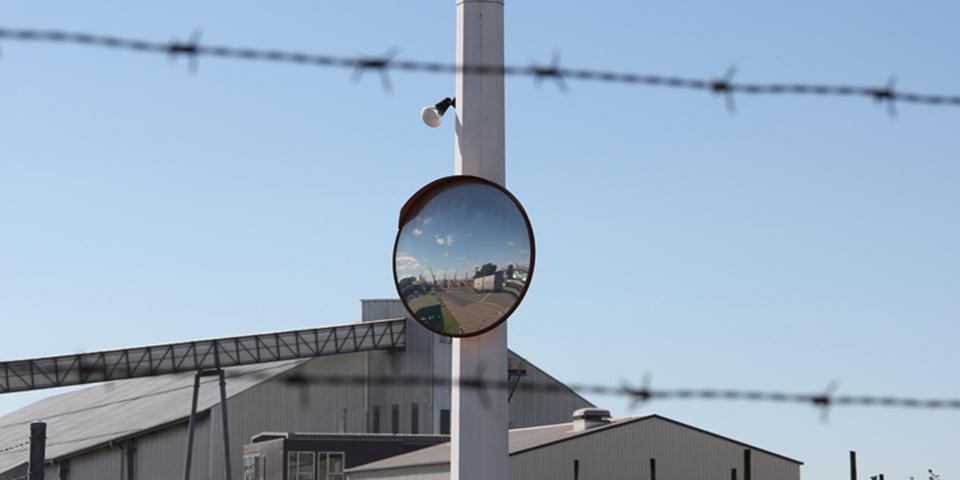

DeLuxe Acrylic Checkpoint
