Description
Outdoor DeLuxe Half Dome
The Outdoor DeLuxe Half Dome Mirror is designed for driveway safety when a driver needs to see both left and right before exiting a building to avoid collisions. The lightweight vinyl back and lid is sealed to enclose the cavity and to withstand weather. Ideal for busy forklift loading areas, warehouses, factories and industrial buildings. Also an easy way to observe children around schools or childcare centres for outdoor play areas. Complete with adjustable outdoor J-Bracket, this new innovation is one of the most effective ways to improve two-way visibility.
Features
- 2mm acrylic mirror face
- Pure reflective coating
- Vinyl celuka back and lid
- Outdoor weather resistant
- 180 degree viewing area
- Includes Outdoor J-Bracket to fix to wall
- Mounting screws Not included.
- Pole mounting kit available
Suitable Uses
- Outdoor Two-Way observation
- Industrial Safety
- Driveways and Carparks
- Pedestrian Crossings and Sidewalks
Download Information Sheet pdf.
Positioning
Specifications
| Product Code | Size Diameter | View Distance | Mirror Face | Mirror Back | Bracket Length |
|---|---|---|---|---|---|
| 18535HO | 600x300mm | Up to 9m | 2mm Acrylic | Vinyl Celuka | 190mm |
| 18553HO | 900x450mm | Up to 12m | 2mm Acrylic | Vinyl Celuka | 190mm |
Installation Guide

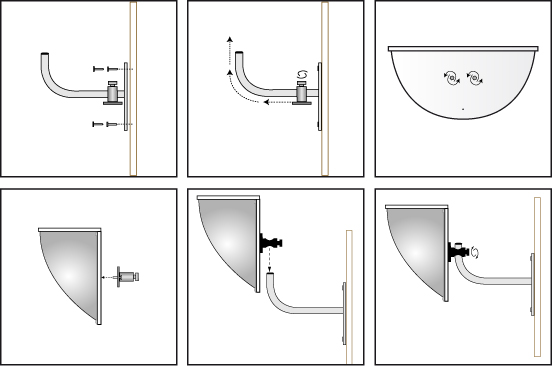

Outdoor Half Dome Installation Guide:
-
Decide the appropriate place to site the mirror to give maximum vision.
-
Fix J-Bracket to wall using suitable hardware, allowing enough room to get the mirror onto the J-Bracket.
-
Slide the adaptor on the back of the mirror over the J-Bracket and hold in desired position.
-
Once you have found the desired angle of the mirror face, tighten the locking bolt on the adaptor securely.
-
Now the job is complete, totally remove the protective film from the face.
Cleaning Guide
Acrylic Mirror Cleaning Guide:
General Cleaning:
DuraVisionTM recommend cleanning their acrylic mirror faces with soap and water and then with a clean, soft, lint free, damp cloth. Use a non-abrasive polish, such as Johnson’s Pledge or Mr Sheen for a clear bright reflection.
Saturate a clean soft cloth with polish, then spray the mirror face with polish. Wipe the wetted cloth over the mirror surface. With a another clean dry cloth buff the mirror face until it is clear of polish.
DO NOT USE:
- abrasives
- acids
- solvents such as petrol and laquer thinners
Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours. To remove graffiti, use a non-abrasive substance such as De-Solv-it Stain Remover. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.
Scratches:
To remove scratches or repair blemishes on acrylic mirror faces only, use the following products:
- For cleaning use NOVUS plastic polish #1
- For fine scratches use NOVUS plastic polish #2
- For badly scratched surfaces use NOVIS plastic polish #3 followed by #2 and #1.
Additional Images

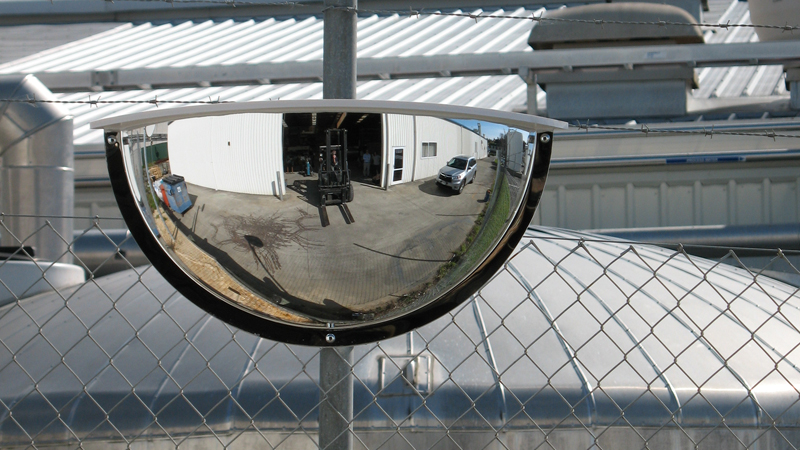

Outdoor Half Dome Forklift Safety

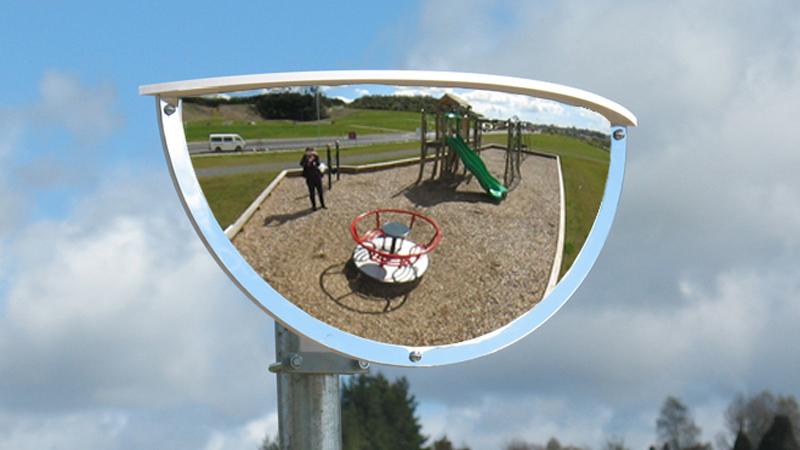

Outdoor Half Dome Playground Observation

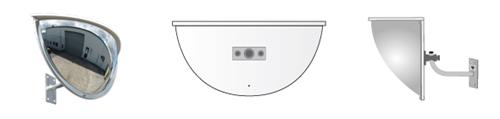

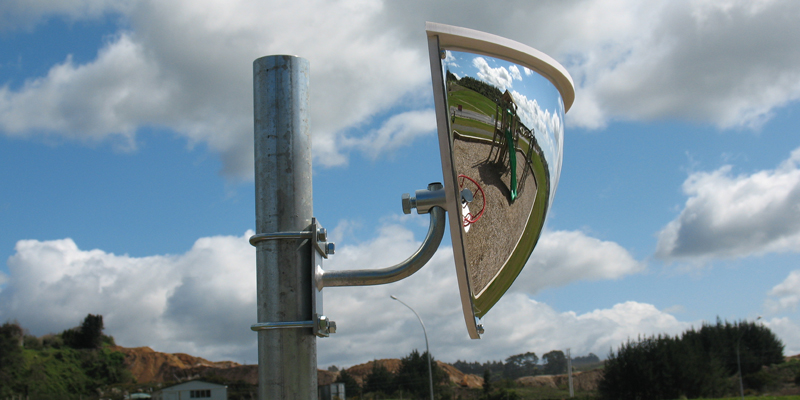

Outdoor Half Dome Side View
