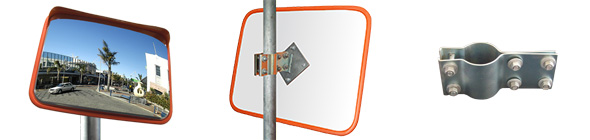

Rectangle DeLuxe Stainless Steel Feature

Description

Rectangular Deluxe Stainless Steel Convex Mirror

The Deluxe Stainless Steel Rectangular mirror has a galvanized steel back and hood and is powder coated in traffic orange for enhanced visibility. The stainless steel face is virtually unbreakable and makes it ideal in traffic situations where vandalism or projectile objects are a problem.



Features

  • 304 grade 18 gauge stainless steel mirror face
  • Large radius of curvature for minimum distance distortion
  • Orange powder coated galvanised steel back and hood
  • Orange vinyl extrusion
  • Outdoor strength pole mount fittings to fit 75mm dia. pole
  • Wall mounting adaptor available



Suitable Uses

  • Road and Traffic Safety
  • Extreme Weather Conditions
  • Coastal Environments
  • Driveways and Carparks
  • Outdoor Security aound Buildings
  • Security Checkpoints and Boarder Control



Download Information Sheet pdf.



Positioning

Outdoor SS Heavy Duty Traffic Position



Specifications

Product Code Size Diameter View Distance Mirror Face Mirror Back Bracket Length
16336C 225x320mm Up to 23mm .7mm 304 Gauge Stainless Steel Stainless Steel 32mm dia. Pole Clamp
16346C 450x600mm Up to 42m .9mm 304 Gauge Stainless Steel Powder Coated Steel 75mm dia. Pole Clamp
16368C 600x800mm Up to 60m .9mm 304 Gauge Stainless Steel Powder Coated Steel 75mm dia. Pole Clamp

Installation Guide

Pole Mounting - Clamp Bracket:
  1. Decide the appropriate place to site the mirror on 75mm pole.
  2. Fix clamp and mirror mount assembly to the pole.
  3. Make sure adjustment slot is to the bottom
  4. Fix the mirror to the clamp bracket.
  5. Once the desired position has been found, tighten the bolts and nuts.

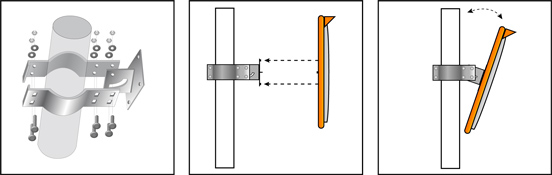

Outdoor Rectangle DeLuxe Clamp Installation
Wall Mounting - Clamp Bracket:

    NOTE: The Wall Mounting Adaptor is not included and must be purchased separately.
    For use only with 75mm Clamp Bracket (ie: 600x400mm - 800x600mm size mirrors).

  1. Decide the appropriate place to site the mirror (on a flat surface) and fix the Wall Adaptor using suitable hardware.
  2. Fix clamp and mirror mount assembly to the Wall Adaptor making sure the slot is to the bottom.
  3. Fix the mirror face to the clamp bracket.
  4. Once the desired position has been found, tighten the bolts and nuts.

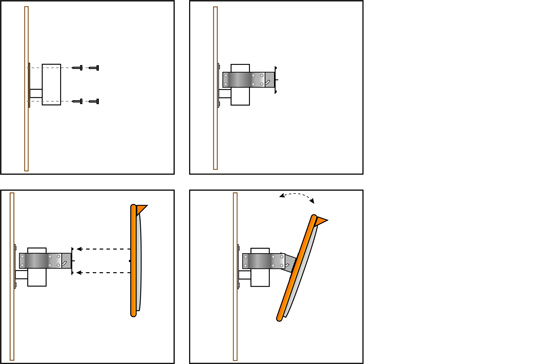

Rectangle Wall Adaptor Assembly



Download Installation Guide pdf.

Cleaning Guide

Stainless Steel Mirror Cleaning Guide:

General Cleaning:
DuraVision™ recommend cleaning their Stainless Steel Mirrors with soap and water and then with a soft, lint free, damp cloth.

DO NOT USE:

  • abrasives
  • acids

Polish:
DuraVision™ does not recommend using a commercial Stainless Steel Polish, as the protective layer will leave a residue on the highly polished mirror faces. Rubbing plain white flour on a dry stainless steel mirror face with a dry cloth will polish the mirror to its original brilliance.

Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours with a suitable lacquer thinners. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.



Download Cleaning Guide pdf.

Additional Images

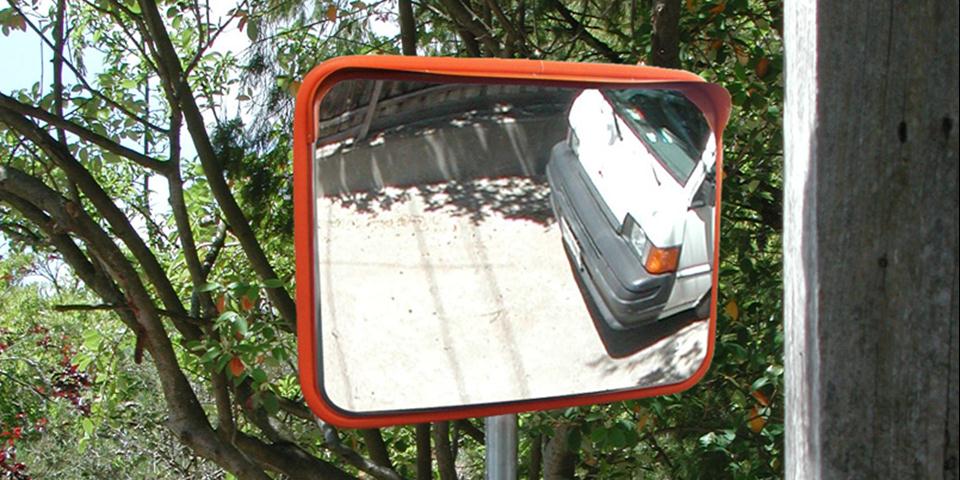

Rectangular DeLuxe Stainless Steel Street

Rectangular DeLuxe Stainless Steel Street

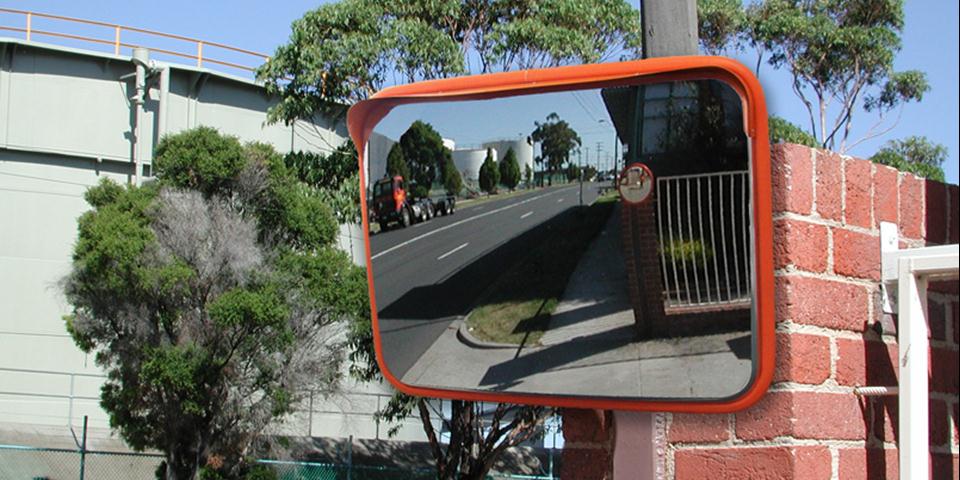

Rectangular DeLuxe Stainless Steel Roadside

Rectangular DeLuxe Stainless Steel Roadside

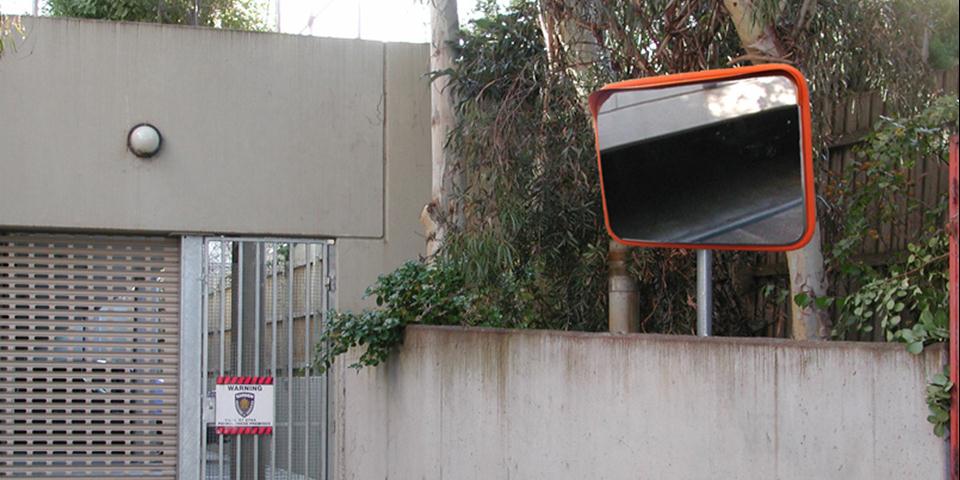

Rectangular DeLuxe Stainless Steel Carpark

Rectangular DeLuxe Stainless Steel Carpark
