Forklift Standard Rear Vision Mirror and Fixings

Description

Forklift Standard Rear Vision Mirror

The Standard Rear Vision Model is available in two sizes and comes complete with a tough stainless Steel back, impact resistant face and easily adjustable bracketing system.



Features

  • 2mm acrylic mirror face
  • Pure reflective coating
  • Pressed Stainless Steel back
  • Vinyl extrusion
  • Includes angle mounting plate to fix to cab upright support.



Suitable Uses

  • Forklift Rear Vision
  • Other vehicle Rear Vision



Download Information Sheet pdf.



Positioning

Forklift Standard Rear Vision Position



Specifications

Product Code Size Diameter View Distance Mirror Face Mirror Back Bracket Length
19515 150mm Up to 3m 2mm Acrylic Stainless Steel 54x32mm Angle
19520 200mm Up to 4m 2mm Acrylic Stainless Steel 52x32mm Angle

Cleaning Guide

Acrylic Mirror Cleaning Guide:

General Cleaning:
DuraVisionTM recommend cleanning their acrylic mirror faces with soap and water and then with a clean, soft, lint free, damp cloth. Use a non-abrasive polish, such as Johnson’s Pledge or Mr Sheen for a clear bright reflection.

Saturate a clean soft cloth with polish, then spray the mirror face with polish. Wipe the wetted cloth over the mirror surface. With a another clean dry cloth buff the mirror face until it is clear of polish.

DO NOT USE:

  • abrasives
  • acids
  • solvents such as petrol and laquer thinners

Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours. To remove graffiti, use a non-abrasive substance such as De-Solv-it Stain Remover. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.

Scratches:
To remove scratches or repair blemishes on acrylic mirror faces only, use the following products:

  • For cleaning use NOVUS plastic polish #1
  • For fine scratches use NOVUS plastic polish #2
  • For badly scratched surfaces use NOVIS plastic polish #3 followed by #2 and #1.



Download Cleaning guide pdf.

Additional Images

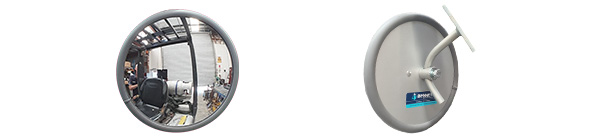

Forklift Standard Rear Vision Mirror

Forklift Standard Rear Vision Mirror

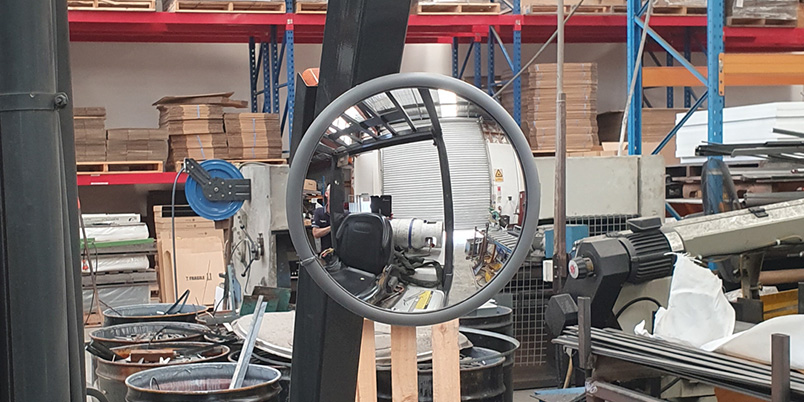

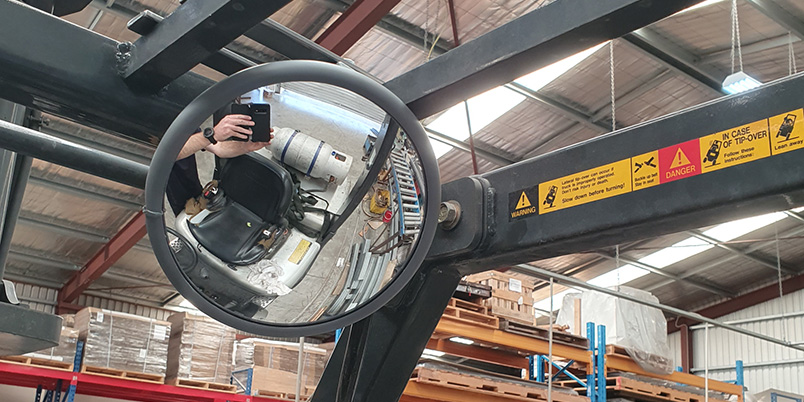

Round Rear Vision Mirror on Forklift

Round Rear Vision Mirror on Forklift

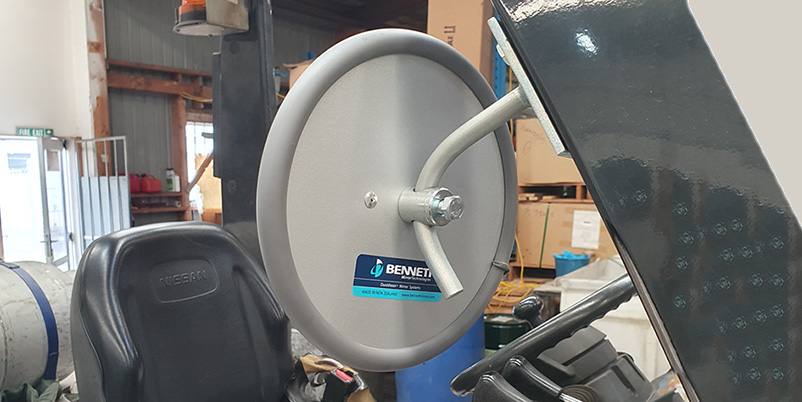

Stainless Steel Back on Standard Rear Vision Mirror

Stainless Steel Back on Standard Rear Vision Mirror
